Description
GET THE ULTIMATE UPGRADE FOR YOUR STOCK FRONT SUSPENSION WITH OUR GEN 3 RAPTOR LIMIT STRAP & BUMP STOP KIT
FEATURES & BENEFITS • Designed to work with the factory stock lower a-arm & bolt on to the cast aluminum.• Limits the top out travel and saves your top shock mount from premature damage.• Extends the life of the front suspension components• Restraints the top out so you don’t have to rely on just the shock to stop the droop.• An absolute must-have If you’re using aftermarket springs on your Raptor• Engineered to work with the Fox, King, or ADS front bump stops. 2.5″ OD and 2.5″ travel bump stop provides full bottom out protection.• Made for Gen 3 Raptor / Raptor R ( 2021, 2022, 2023, 2024, 2025 )

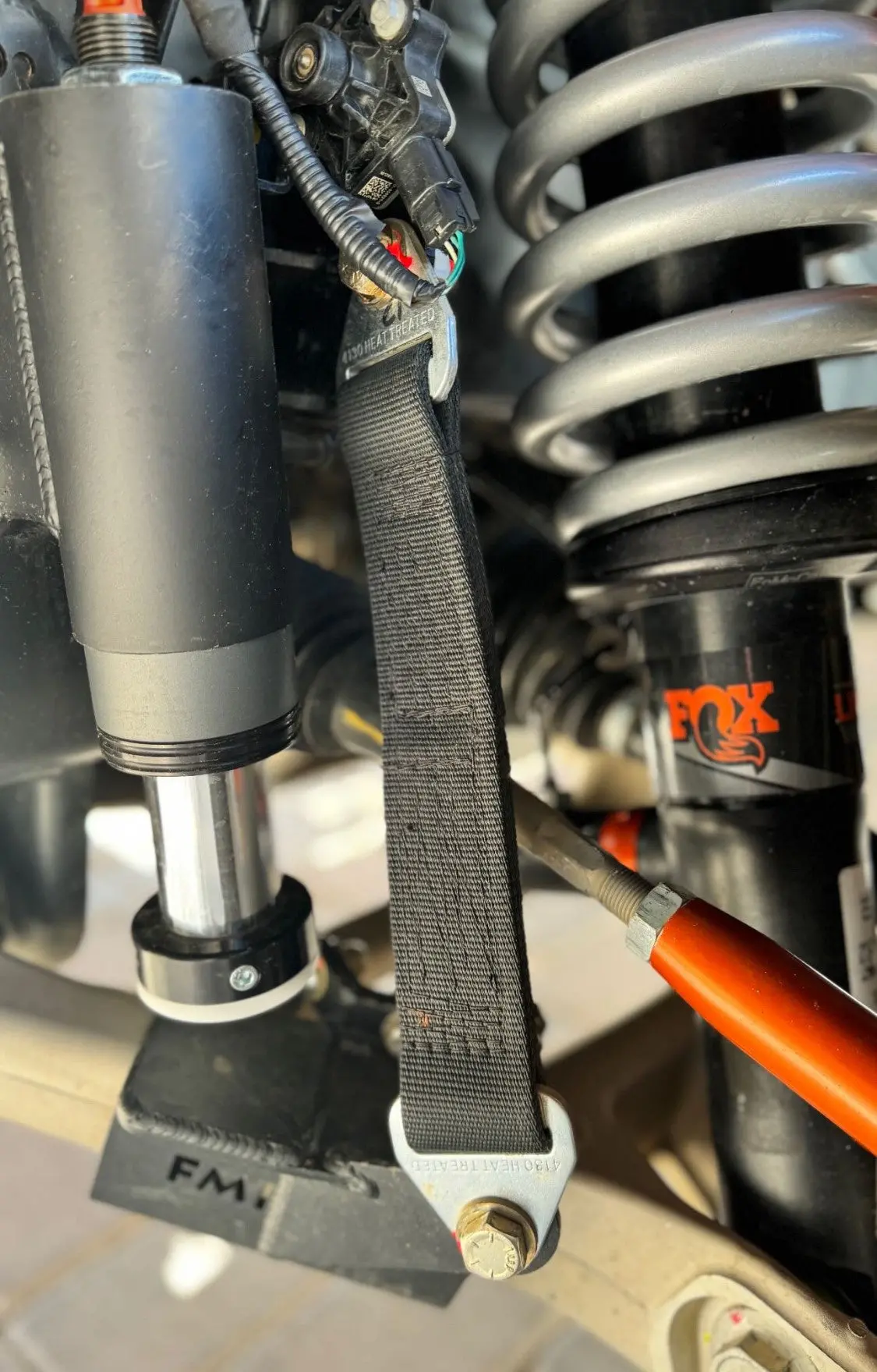

STRAPS WITH DURABILITY & STRENGTH • They are 12 inches long and made of high quality material that allows them to withstand abuse when you off-road.• Each strap features 4 layers of military grade webbing with steel mounting tabs at the end that are plated black. • Their extreme durability will provide you with long lasting strength, unlike other cheap straps that will stretch and wear out over time.

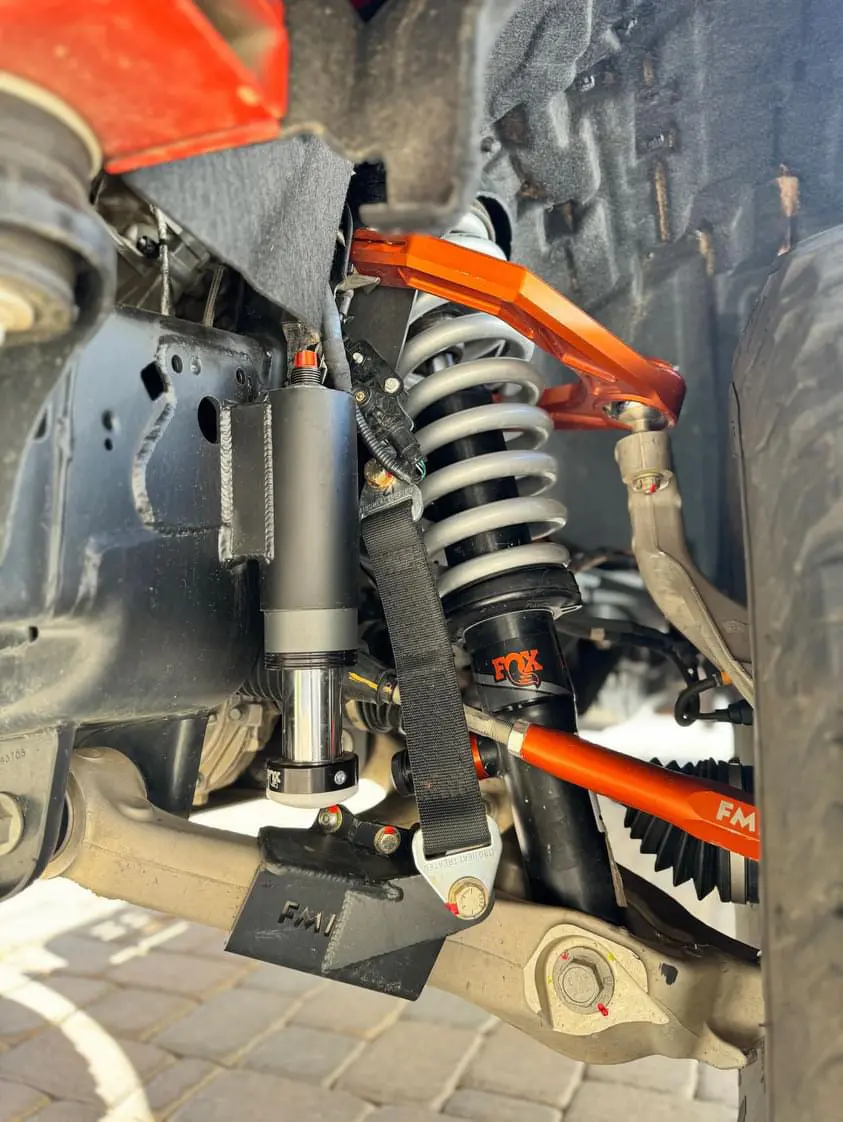

MOUNTING BRACKETS WITH BUILT-IN BUMP PAD• A bump stop pad is built into the mounting brackets as an easy addition for a front bump stop kit to be added at any time. • The mounting brackets secure around the front of the lower stock control arm and are mig welded in house and then finished in a hammer black powder coat for ultimate durability and strength.
KIT INCLUDES:( 2 ) 12″ length Limit Straps
( 2 ) Bump stop can mounts
( 2 ) 2.5″ dia x 2.5″ travel bump stops
( 2 ) Main Mounting Brackets
( 2 ) Mounting Bracket Backing PlatesLower Control Arm Mounting Bracket Hardware: ( 10 ) 3/8-16 x 1 1/4″ Bolts
( 10 ) 3/8-16 Nyloc Nuts
( 6 ) 3/8 WashersLower Strap Mounting Bracket Hardware( 2 ) 1/2-20 Nyloc Nuts
( 2 ) 1/2-20 Shallow Nyloc Nuts
( 2 ) 1/2-20 12 point Bolts
( 4 ) 1/2 Washers Upper Strap Mounting Bracket Hardware( 2 ) 1/2-13 x 1 1/2″ Bolts
( 2 ) 1/2-13 Nyloc Nuts
( 4 ) 1/2 Washers*** INSTALLATION NOTICE ***This kit requires you to weld the Bump stop mount to the frame and should be installed by a qualified welder/fabricator – It will not work with Fox upgraded 3.0 hoses without rebuilding shocks and hose kit
