Description

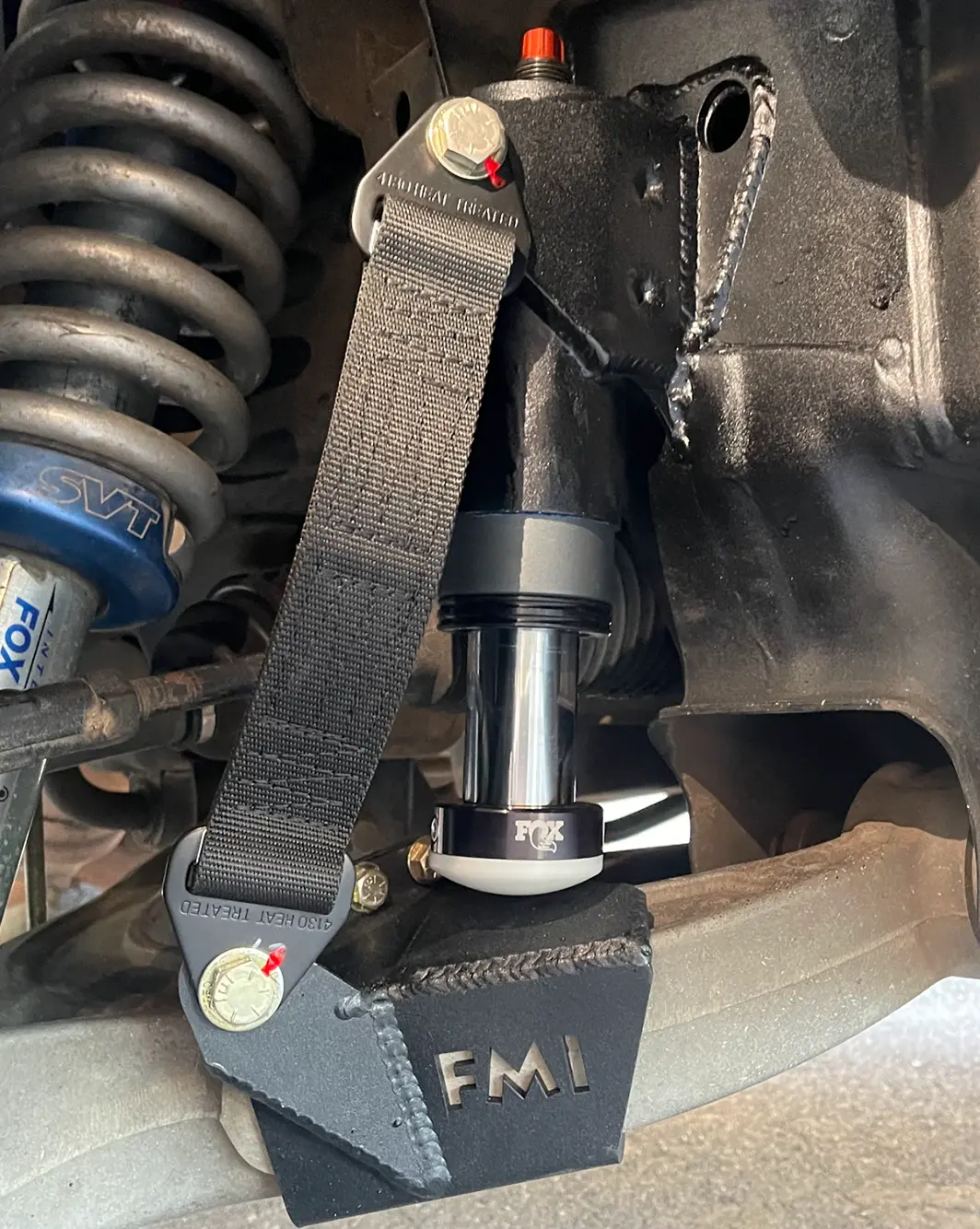

Unlock the full potential of your Gen 1 Raptor (2010–2014) with our front limit strap and bump stop kit. Designed to work with the factory stock lower a-arm, this kit bolts directly to the cast aluminum arm for straightforward installation.
Features & Benefits
- Adds a Fox, King, ADS or Carbon bump stop to the front stock suspension (2.5″ OD × 2.5″ travel bump stop for complete bottom-out protection).
- Works with factory stock lower a-arm and bolts directly to the cast aluminum arm.
- The Limit Strap Prevents top-out and saves your shock from premature failure.
- Extends the life of front suspension components.
- Limits droop travel so you don’t rely solely on the shock to stop extension.
- Must-have if you’re running aftermarket springs on your Raptor.
- Purpose-built for Gen 1 Raptor (2010–2014).
Straps Built for Durability & Strength
- Heavy-duty 12″ straps made from premium materials withstand the toughest off-road abuse.
- Each strap is constructed with 4 layers of military-grade webbing.
- Black-plated steel mounting tabs resist corrosion and deliver lasting strength.
- Unlike cheap alternatives, our straps will not stretch out or wear prematurely.

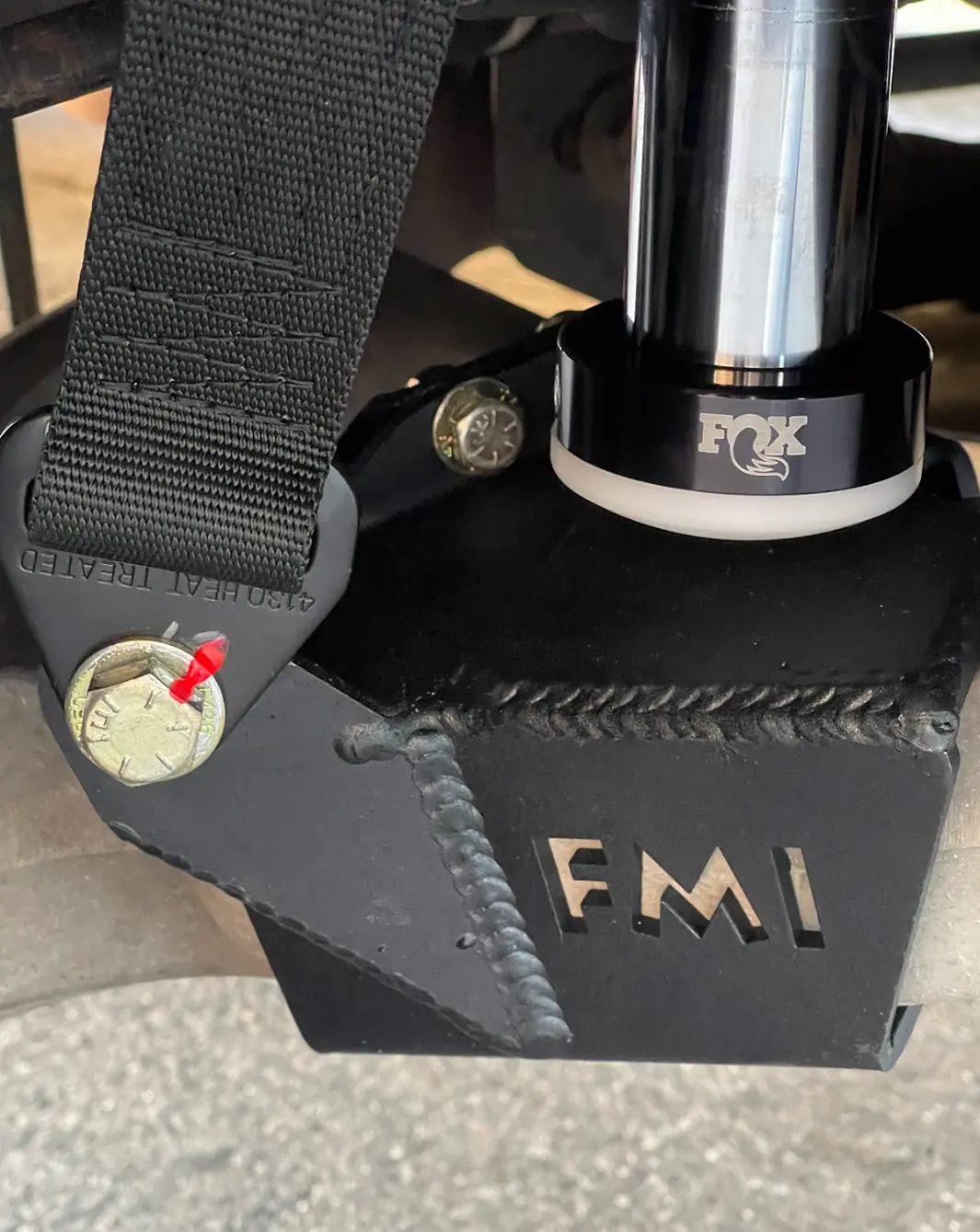

Mounting Brackets with Built-In Bump Stop Pad
- Integrated bump stop pad makes adding a front bump stop kit simple.
- Brackets secure around the front of the stock lower control arm.
- MIG-welded in-house and finished with a hammer black powder coat for strength and durability.
⚠️ Installation Notice

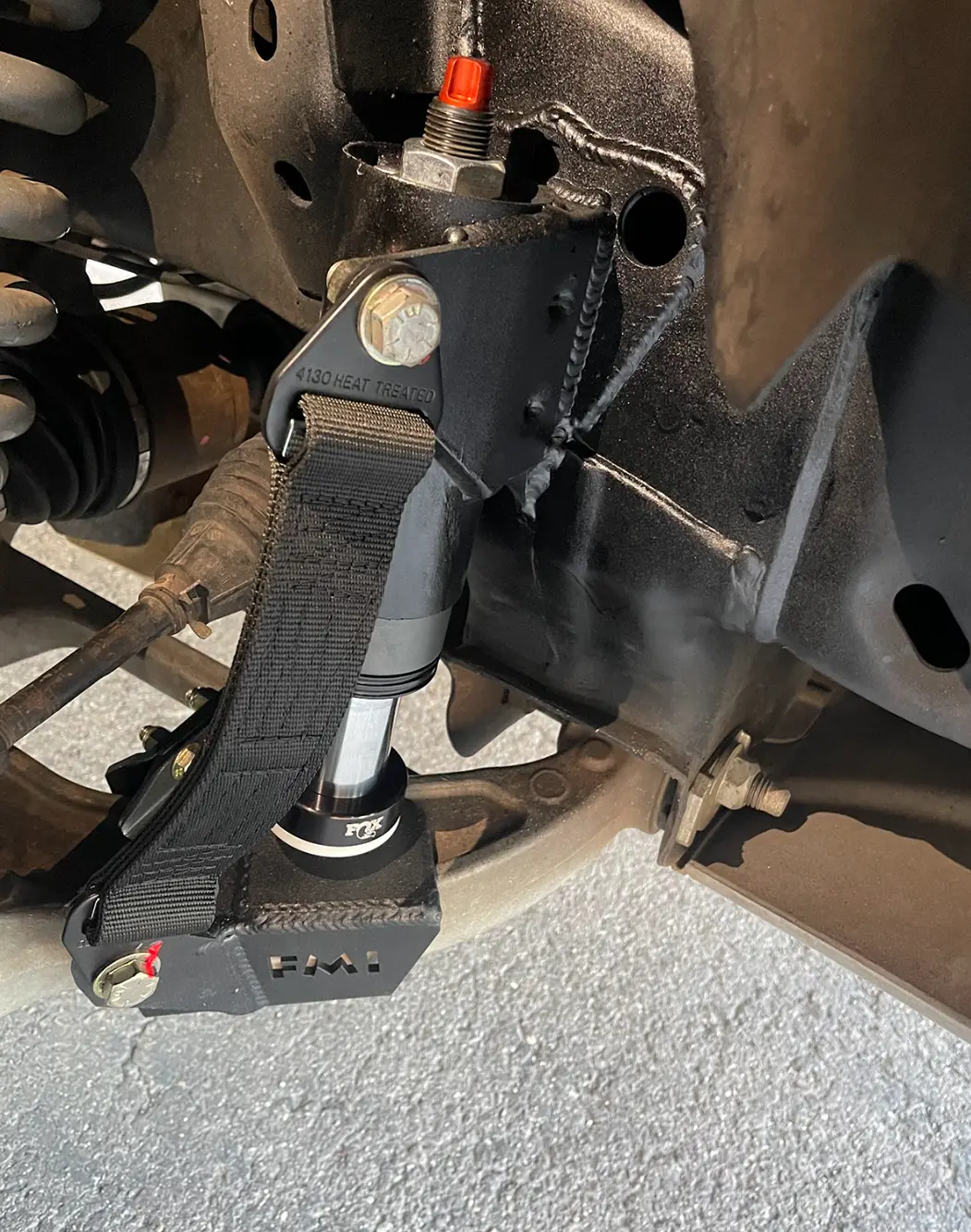

- Welding the bump stop mount to the frame is required.
- Should only be installed by a qualified welder/fabricator.
- May not be compatible with Race Series front shocks or remote reservoir shocks that require frame-mounted hardware. This depends on your hose routing to clear the bump stop and limit strap.
Kit Includes
- (2) 12″ Limit Straps
- (2) Bump Stop Can Mounts
- (2) 2.5″ OD × 2.5″ Travel Bump Stops
- (2) Main Mounting Brackets
- (2) Mounting Bracket Backing Plates
Lower Control Arm Mounting Bracket Hardware
- (10) 3/8-16 × 1-1/4″ Bolts
- (10) 3/8-16 Nylock Nuts
- (6) 3/8 Washers
Lower Strap Mounting Bracket Hardware
- (2) 1/2-20 Nylock Nuts
- (2) 1/2-20 Shallow Nylock Nuts
- (2) 1/2-20 12-Point Bolts
- (4) 1/2 Washers
Upper Strap Mounting Bracket Hardware
- (2) 1/2-13 × 1-1/2″ Bolts
- (2) 1/2-13 Nylock Nuts
- (4) 1/2 Washers
