Description

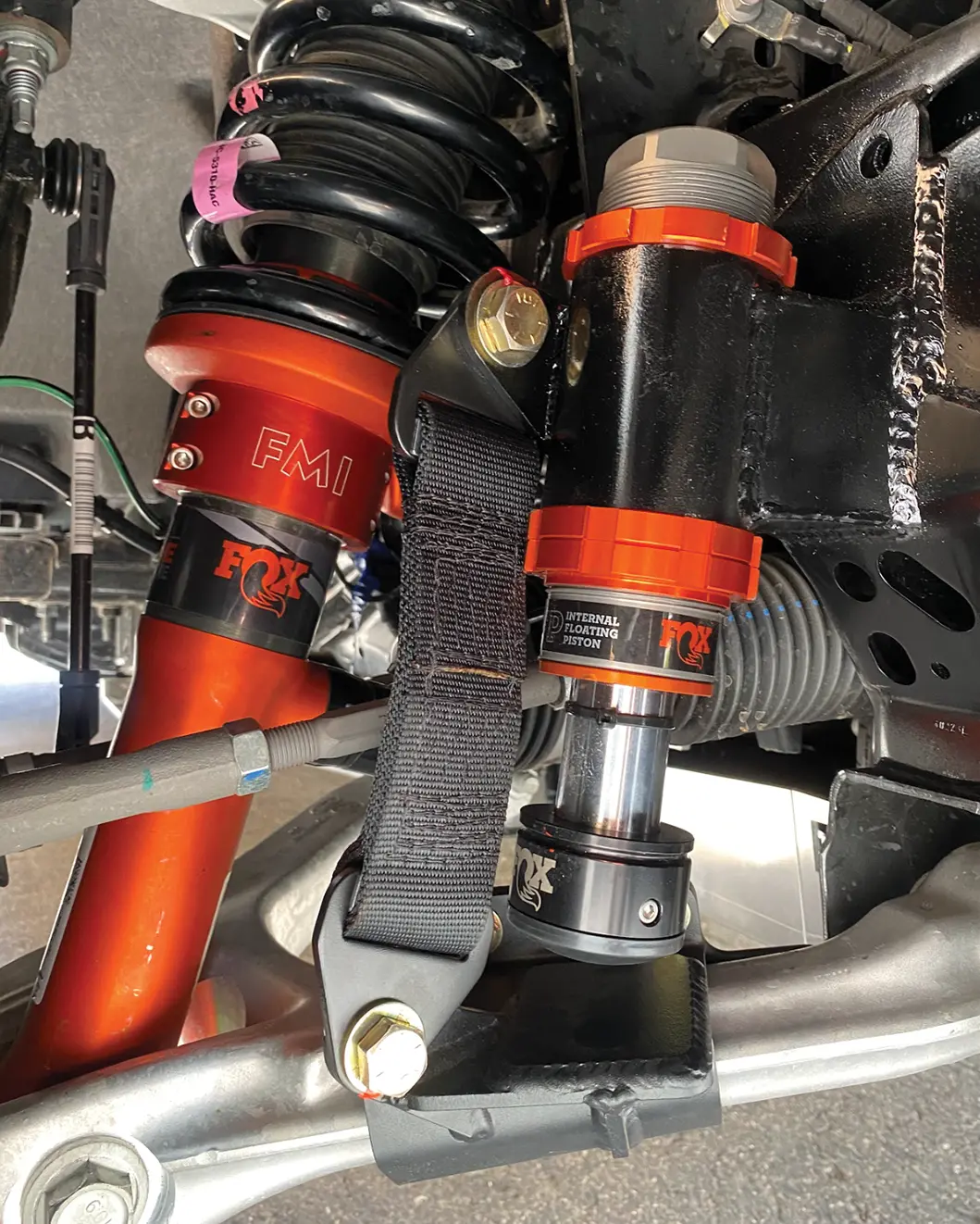

Get the ultimate stock front suspension upgrade with our new front limit strap and bump stop kit for Ranger Raptor
KEY FEATURES & BENEFITS • Designed to work with your factory stock lower a-arm and bolt on to the cast aluminum.• Limits the top out travel and saves your top shock mount from premature damage.• Extends the life of your front suspension components• Restraints the top out so you don’t have to rely on just the shock to stop the droop.• An absolute must-have If you’re doing any real off-roading in your Ranger Raptor• Engineered to work with Fox, King, Carbon, or ADS front bump stops. 2.0″ OD and 2.0″ travel bump stop provides full bottom out protection.

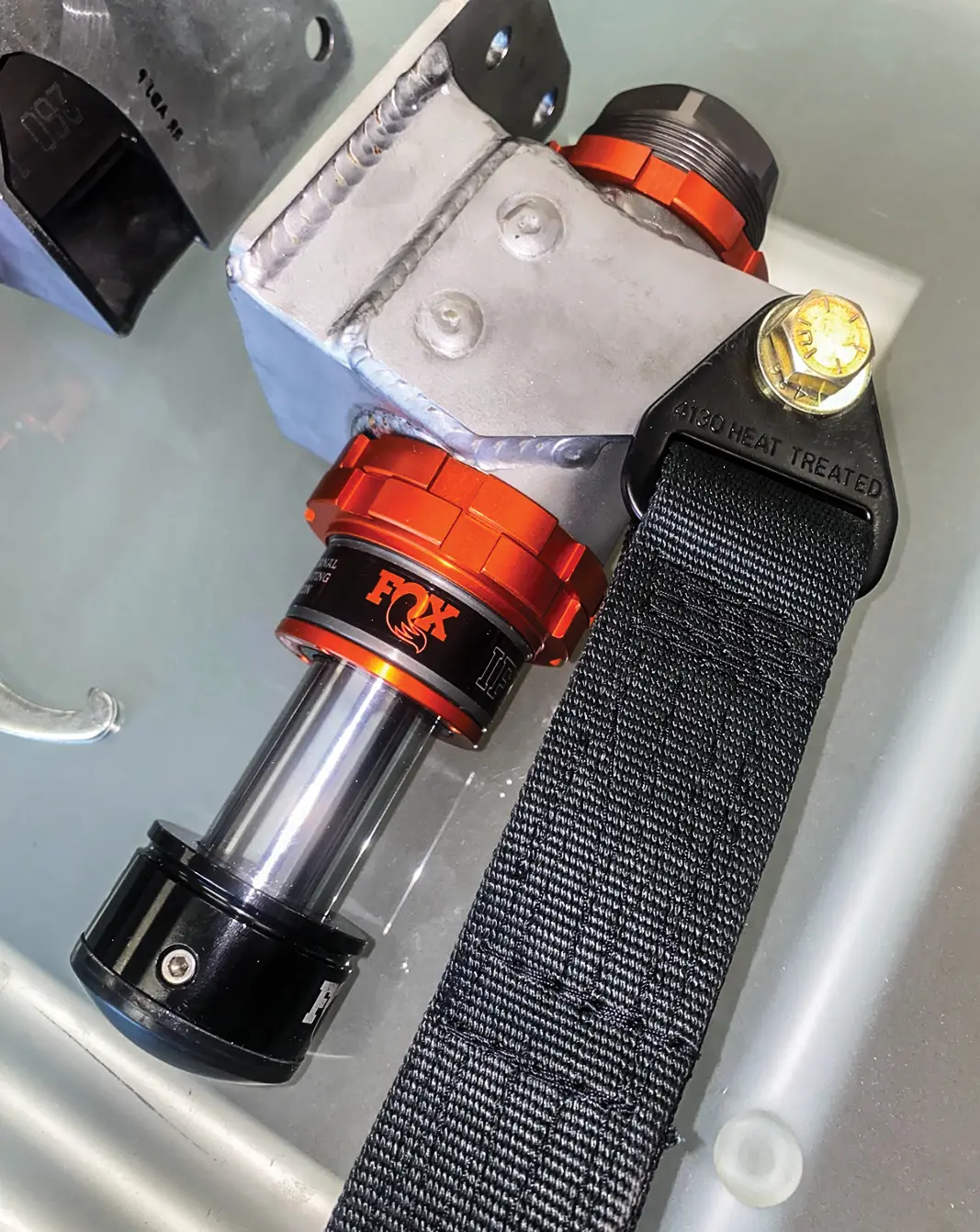

EXTREME DURABILITY & STRENGTH• The 9″ limit straps are made of high quality material that is capable to withstand abuse when you off-road. Their extreme durability will provide you with long lasting strength.• Each strap features 4 layers of military grade webbing with steel mounting tabs at the end that are plated black.
MOUNTING BRACKET WITH BUILT-IN BUMP PAD• A bump stop pad is built into the mounting brackets for an effortless integration• The mounting brackets that secure around the front of the lower stock control arm and are mig welded in house and then finished in a hammer black powder coat for ultimate durability and strength.
INSTALLATION DOCUMENT
*** INSTALLATION NOTE ***This kit requires you to weld the Bump stop mount to the frame and should be installed by a qualified welder/fabricator

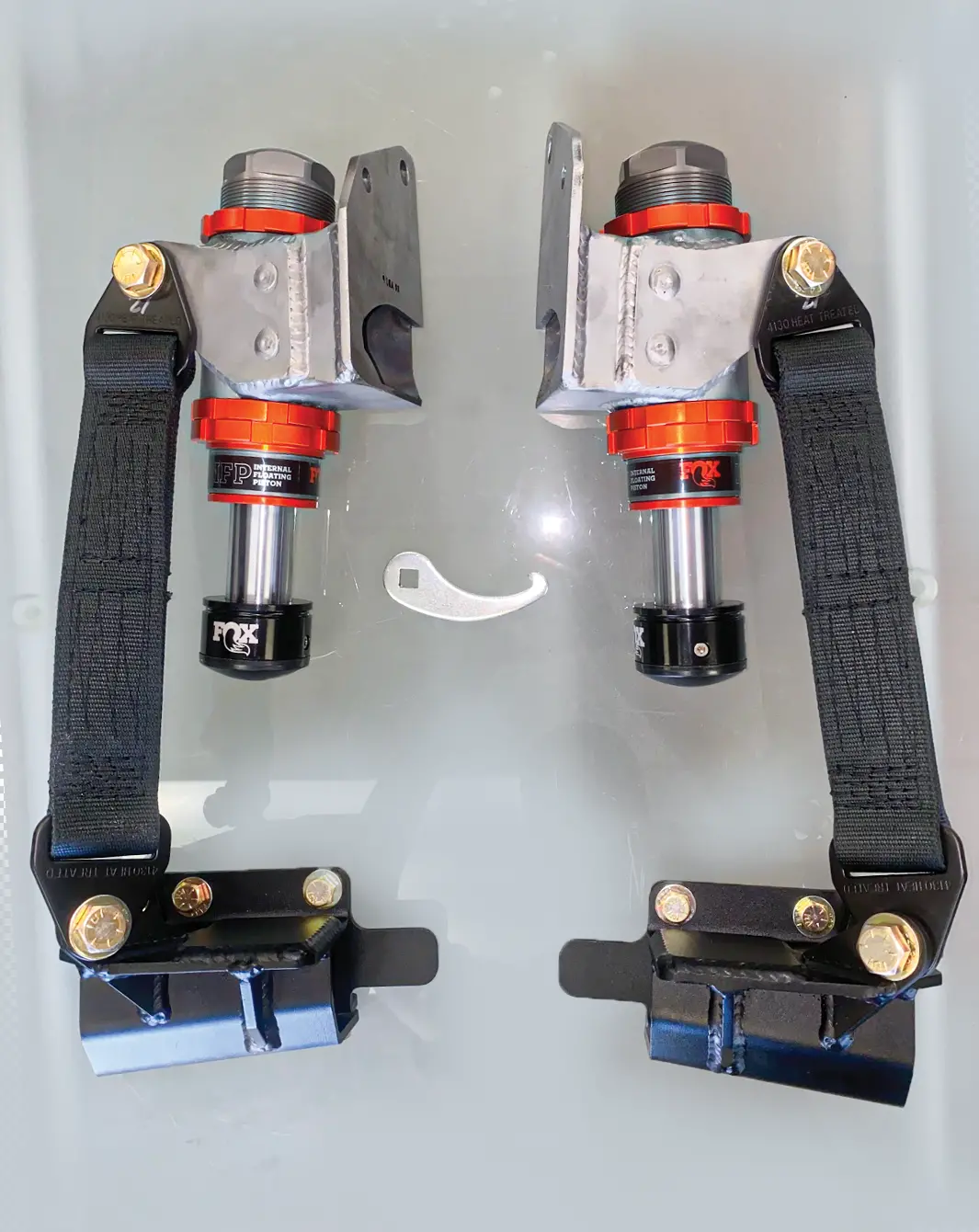

KIT INCLUDES: • ( 2 ) 9″ length Limit Straps• ( 2 ) Bump stop can mounts• ( 2 ) Lower Arm Mounting Brackets• ( 12 ) 3/8-16 x 1 Hex head Yellow Bolts • ( 12 ) 3/8-16 Nyloc Lock Lock Nuts• ( 24 ) 3/8 Flat Washers
• ( 4 ) 1/2-20 x 1 1/4″ Hex Head Yellow Bolts• ( 4 ) 1/2-20 12 All Metal Lock Nut• ( 8 ) 1/2″ Flat Washers
Pick the brand of Bump Stop – Fox, ADS, Carbon or King bumps for your kit by selecting the options below before adding to your cart.
