Front Limit Strap and Bump Stop Kit for 2017–2022 Ford F-150 Raptor – Designed for Stock Lower A-Arm

Description

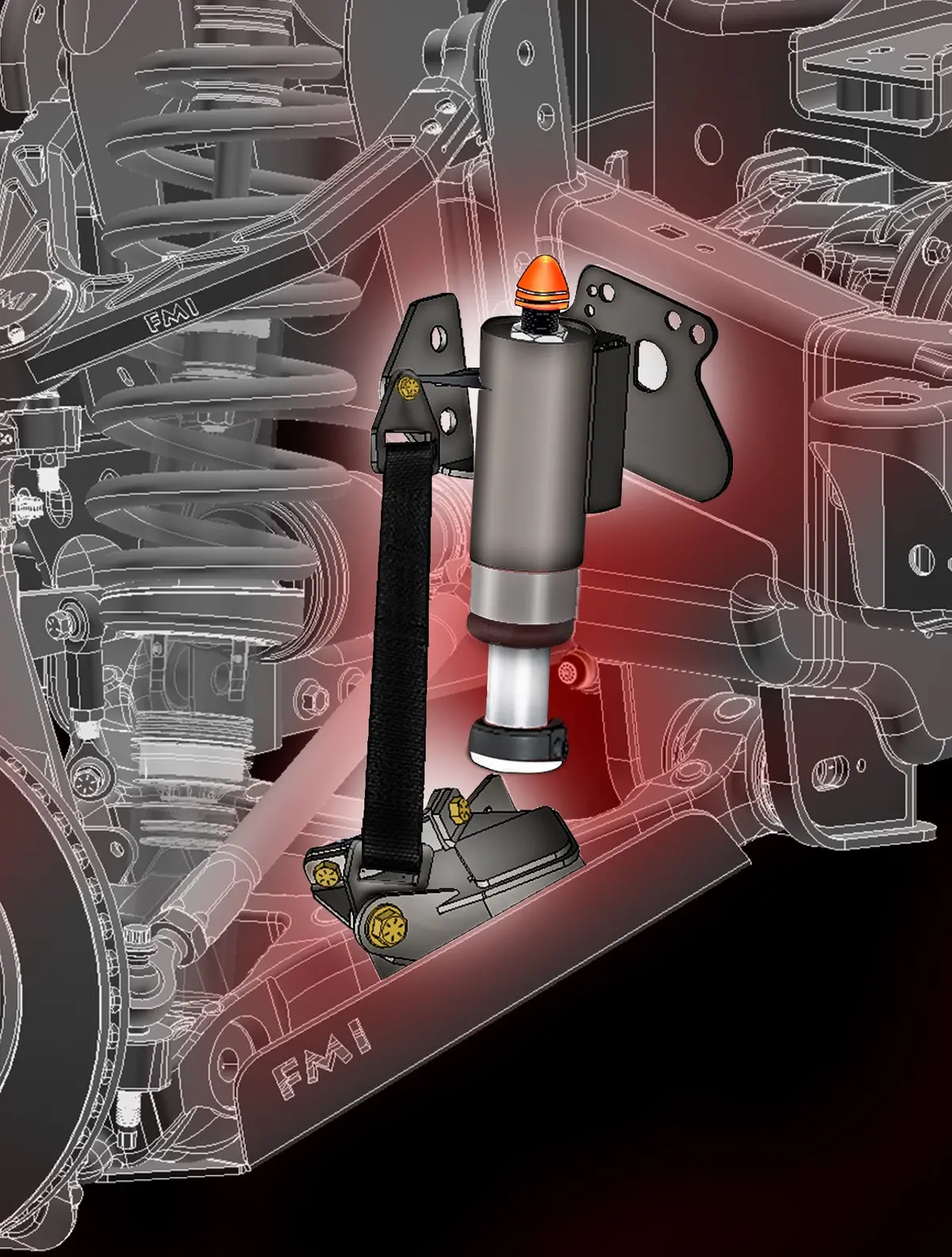

Get the ultimate stock front suspension upgrade with our new front limit strap and bump stop kit. It is designed to work with your factory stock lower a-arm and bolt on to the cast aluminum arm and is easy to install.

• Unlike cheap straps that will stretch and wear out over time, Our durable 12″ straps are made with high quality material that is capable to withstand abuse and will provide you with long lasting strength.

• This is an absolute must-have, especially when using aftermarket springs on your truck. We have seen several trucks rip out the top cap of the shock mount when off-roading from excessive top out pressure and we have heard the front top out noise when you go over a speed bump or have the front suspension come off the ground – this is why our kit will limit the top out so you don’t have to rely on just the shock to stop the droop.

• Each strap features  4 layers of military grade webbing with steel mounting tabs at the end that are plated black.
• A bump stop pad is built in to be an easy addition for a front bump stop kit that has been engineered to work with the stock lower arm and can work with Fox, King, or ADS front bump stops.  2.5″ OD and 2.5″ travel bump stop provides full bottom out protection.

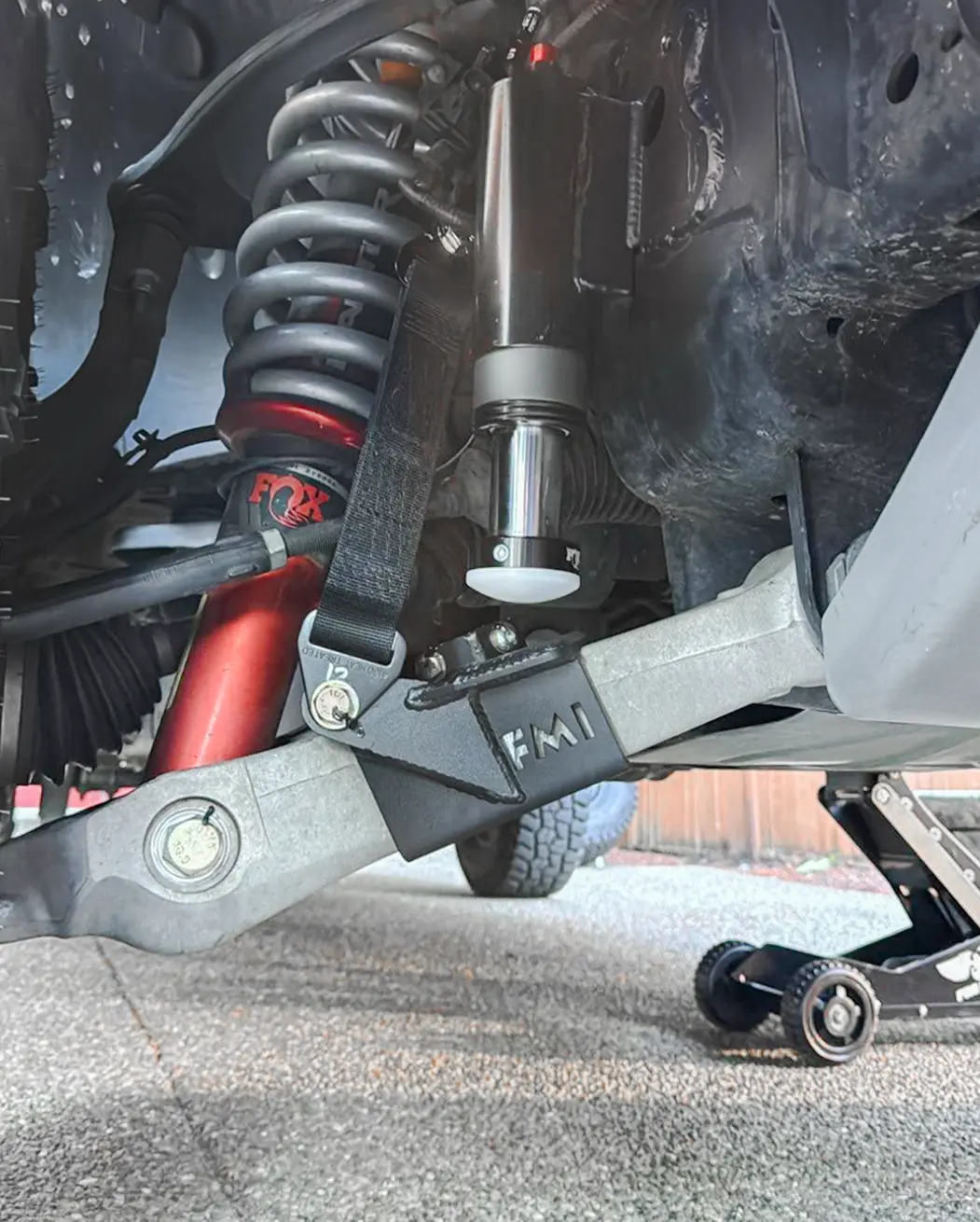

• The mounting brackets that secure around the front of the lower stock control arm are mig welded in house and powder coated in hammer black for ultimate durability and strength.

 This kit requires you to weld the Bump stop mount to the frame and should be installed by a qualified welder/fabricator Also Not Compatible with Race Series front shocks or any remote resivour shock requiring mounting on the frame **

This kit includes:

( 2 )    12″ length Limit Straps
( 2 )    Bump stop can mounts
( 2 )    2.5″ dia x 2.5″ travel bump stops
( 2 )    Main Mounting Brackets
( 2 )    Mounting Bracket Backing Plates

Lower Control Arm Mounting Bracket Hardware:

( 10 )   3/8-16  x 1 1/4″ Bolts
( 10 )   3/8-16 Nyloc Nuts
( 6 )     3/8 Washers

Lower Strap Mounting Bracket Hardware

( 2 )    1/2-20  Nyloc Nuts
( 2 )    1/2-20  Shallow Nyloc Nuts
( 2 )    1/2-20  12 point Bolts
( 4 )    1/2 Washers

Upper Strap Mounting Bracket Hardware

( 2 )    1/2-13 x 1 1/2″  Bolts
( 2 )    1/2-13  Nyloc Nuts
( 4 )    1/2   Washers
