Description

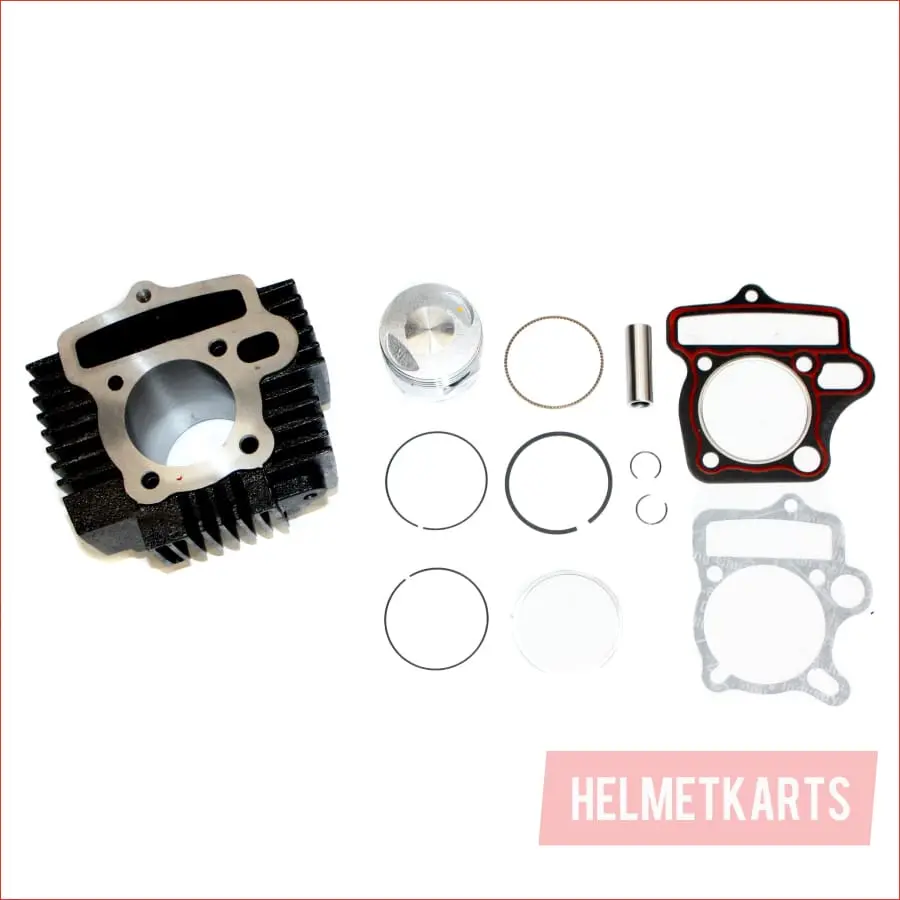

Engine Rebuild Kit (Cylinder / Piston / Gaskets )
Application: 125cc Displacement (Dirt Bike, ATV Quad, Buggy)
| DIAMETER OF BORE | approx 52.4mm |
| DISTANCE BETWEEN HEAD BOLTS
(CENTRE HOLE TO CENTRE HOLE) CLOCKWISE EACH TWO BOLTS |
approx 51.93mm / 50.83mm / 50.37mm / 51.13mm |
| HEIGHT OF THE BARREL (NOT INCLUDE THE SLEEVE) | approx 69.71mm |
| HEIGHT OF THE SLEEVE | approx 26mm |
| DIAMETER OF PISTON (Bottom) | approx 52.4mm |
| HEIGHT OF PISTON | approx 37.14mm |
| LENGTH OF PISTON PIN | approx 41.30mm |
| DIAMETER OF PISTON PIN | approx 12.97mm |
