Description
About this product

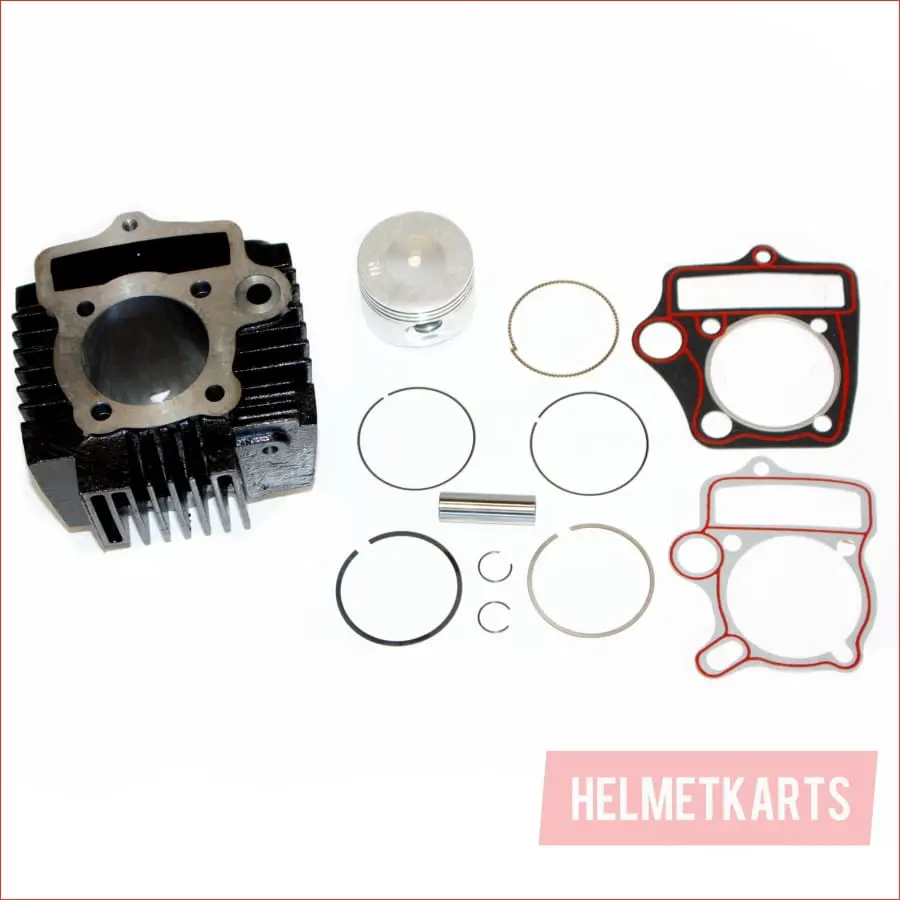

This 52.4mm Cylinder Piston Rebuild Kit is designed specifically for 110cc engines, making it a perfect choice for dirt bikes, ATV quads, and buggies. The kit includes everything needed to perform a complete engine rebuild including the cylinder, piston, and gaskets. By rebuilding your engine with this kit, you can ensure optimal performance and prolong the lifespan of your vehicle.
Specifications
| Specification | Detail |
|---|---|
| DIAMETER OF BORE | approx 52.4mm |
| DISTANCE BETWEEN HEAD BOLTS (CENTRE HOLE TO CENTRE HOLE) CLOCKWISE EACH TWO BOLTS | approx 51.93mm / 50.83mm / 50.37mm / 51.13mm |
| HEIGHT OF THE BARREL (NOT INCLUDE THE SLEEVE) | approx 69.71mm |
| HEIGHT OF THE SLEEVE | approx 26mm |
| Specification | Detail |
|---|---|
| DIAMETER OF PISTON (Bottom) | approx 52.4mm |
| HEIGHT OF PISTON | approx 37.14mm |
| LENGTH OF PISTON PIN | approx 41.30mm |
| DIAMETER OF PISTON PIN | approx 12.97mm |
Features & Benefits
- Complete engine rebuild kit for 110cc engines.
- Includes cylinder, piston, and gaskets.
- Perfect for dirt bikes, ATV quads, and buggies.
- Ensures optimal engine performance and longevity.
