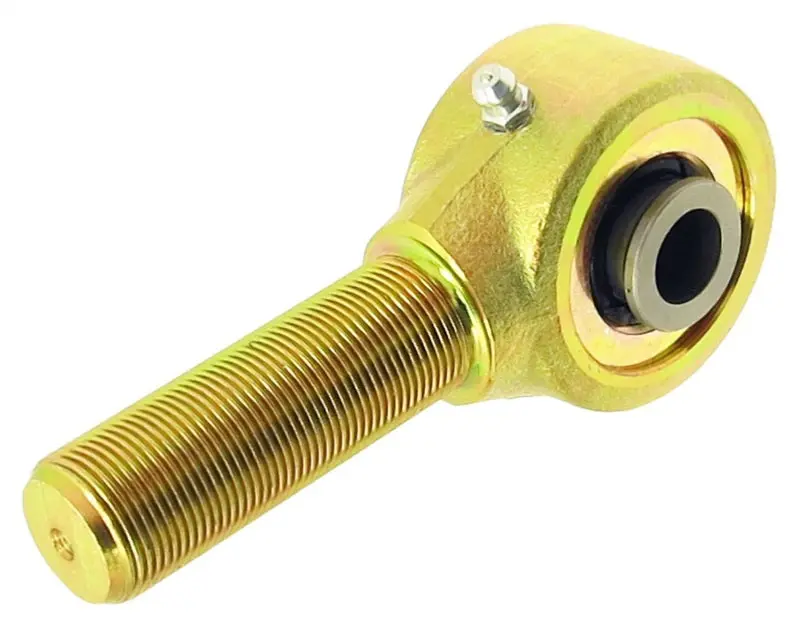

Rockjock Johnny Joint Rod End – Precision-engineered 2-inch narrow forged rod end featuring 7/8-inch-14 left-hand threaded shank and a 0.515-inch diameter ball for high-strength articulation

Description

RockJocks narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint features a narrow 2 in. diameter joint body, fitted with a zerk fitting for greasing, 2.3 in. of 7/8 in.-14 left hand threads on the shank, and a 2 in. mounting width ball with a .515 thru bolt hole. Finished in gold zinc plating.
Johnny Joint® Rod End; 2 in.; Narrow Forged; 0.875 in.-14 LH Threads; 2in. x .515 in. Ball;
