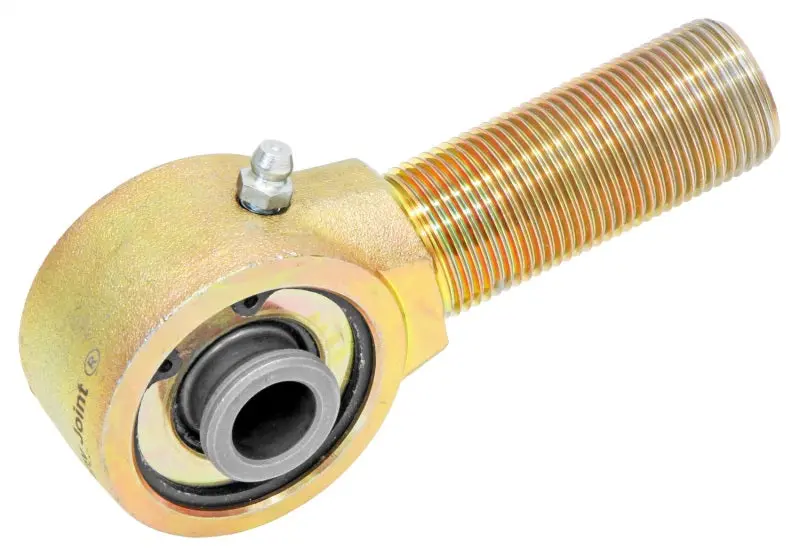

RockJock Johnny Joint Rod End – 2″ Forged, 1.850″ × 0.562″ Ball, 1″-14 RH Thread, Extended Shank, Pre-Greased

Description

RockJocks narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushing that encases the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 in. diameter, fitted with a zerk fitting for greasing, 2 1/4 in. of 1 in.-14 right hand threads on the shank, and a 1.850 in. mounting width ball with a .562 in. thru bolt hole. Finished in gold zinc plating.
Johnny Joint® Rod End; 2 in.; Narrow Body Forged End; .562 in. Thru Hole; 1.850 in. Mounting Width; w/o Bolt;

• Johnny Joint®
