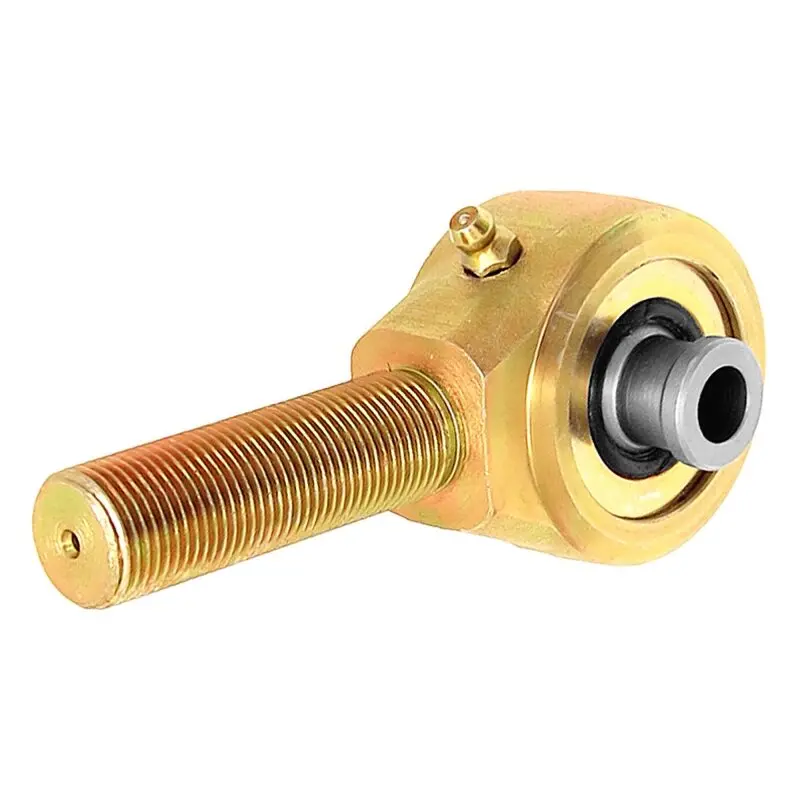

Rockjock Johnny Joint – 2″ Narrow Rod End with 7/8″ LH Thread and 1.615″ × 0.718″ Ball

Description

RockJock’s narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushing that encases the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 in. diameter, fitted with a zerk fitting for greasing, 2 1/4 in. of 7/8 in.-14 left hand threads on the shank, and a 1.615 in. mounting width ball with a .718 in. thru bolt hole. Finished in gold zinc plating.
Johnny Joint® Rod End; 2.0 in.; Narrow Forged; 1.615 in. X .718 in. Ball; 7/8 in.-14 LH Threaded Shank; Externally Greased;
