Rear Suspension Conversion Kit Compatible with Ford Raptor Generations 1, 2, and 3

Description

Convert your Gen 1 Ford Raptor (2009–2014) or F-150 to a full 5-link rear suspension that matches the Gen 3 Raptor suspension geometry.

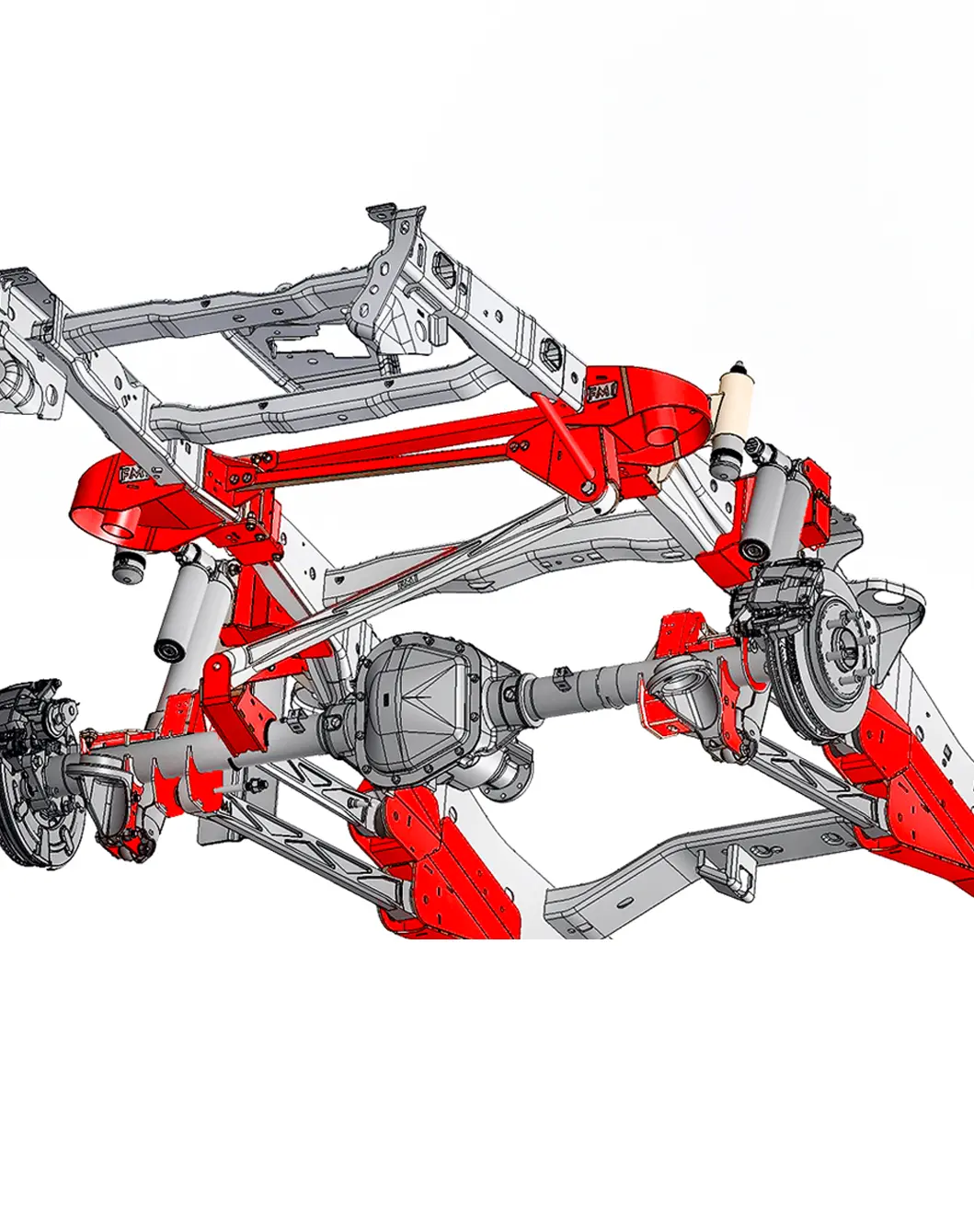

This ultimate conversion kit gives your Gen 1 the complete Gen 3 rear suspension layout, including all mounting points and geometry. Pair it with your choice of stock Gen 3 take-off parts or upgrade to Foutz billet aluminum rear links, Panhard bar, and aftermarket shocks for maximum performance.

You can run factory Gen 3 rear shocks or step up to any aftermarket stock-location upgrade shocks—the kit is fully compatible.

---

Kit Includes:

• Rear coil spring mounts with integrated Panhard bar mount in the stock Gen 3 location
• Rear link mounts that weld to the frame in the stock Gen 3 location
• Heavy-duty rear shock mounts that replicate the Gen 3 geometry with added strength
• Rear axle mount kit with all brackets and mounts to add Gen 3 pick-up points
• Complete hardware kit (nuts, bolts, brackets) for assembly and axle/link mounting

---

What’s NOT Included (must be sourced separately) click on part numbers to be directly linked to Ford’s OEM parts:

• Stock rear coil spring lower cast mounts:

  • Lower (left side):  ML3V-5794-A
  • Lower (right side): ML3V-5793-A

• Stock rear coil spring rubber isolators

  • Upper (left and right): ML3Z-5586-C
  • Lower (left and Right): ML3Z-8321-A

---

Choices You’ll Need to Make:

• Rear Springs – Use stock Gen 3 take-offs or upgrade to aftermarket springs
• Rear Links + Panhard Bar – Choose from:
  • OEM Gen 3 take-offs
  • Foutz billet aluminum links and Panhard bar
  • Heavy-duty fabricated stock-length links with adjustable Panhard bar
• Shocks – Run OEM Gen 3 rear shocks or upgrade to aftermarket stock-location shocks

---

Common Questions:

• ✅ Works with the Foutz rear bump stop kit
• ✅ Compatible with both 35″ and 37″ tires
• ✅ Works with Foutz rear axle diff skid, rear shock skids, and guards
• ✅ Can be upgraded to a coilover bed-cage shock kit for even more performance
• ⚠️ Fits Raptor width only – cannot be used on a standard F-150 without a Raptor-width rear axle and wider rear body

---

⚠️ Important Note: This kit requires substantial cutting and welding and must be installed by a qualified fabricator.
