Description
About this product

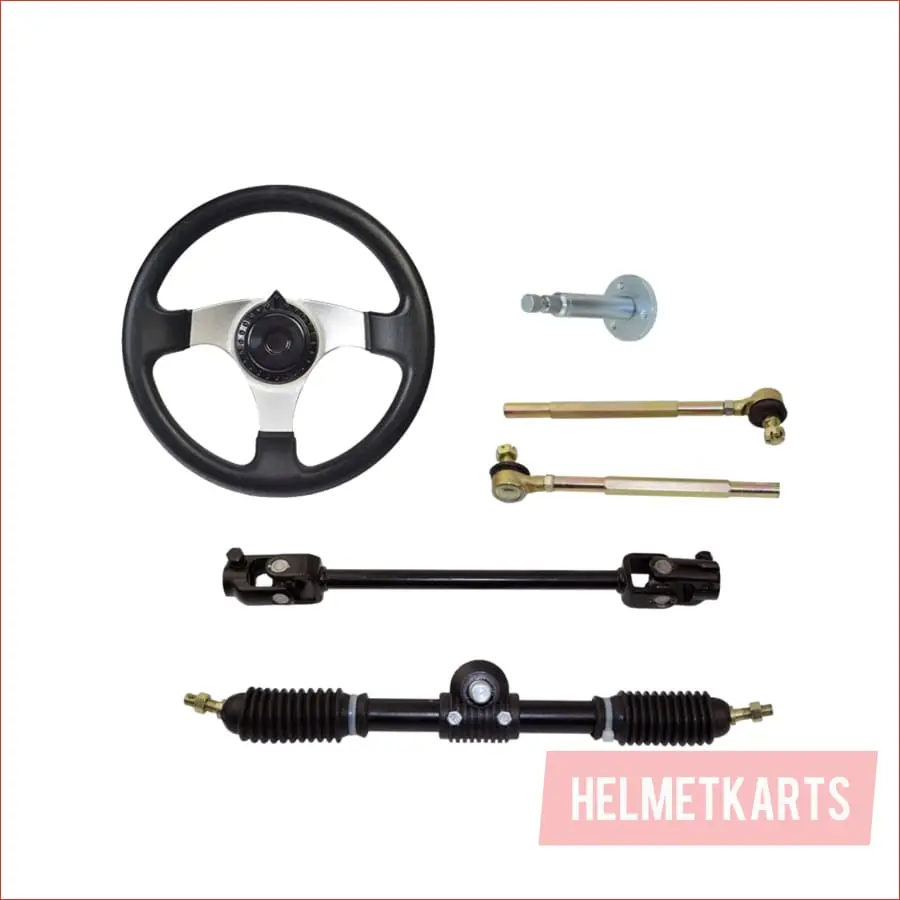

This Pinion Rack Set is designed for reliable steering performance, perfect for various vehicles needing a robust control system. It features an adjustable assembled length of 920mm to 1000mm with tie rod included. The steering column is 195mm in length, housed in a 42mm casing with a bearing, providing smooth operation. The steering link shaft is 480mm long, while the steering travel from left to right is 70mm. For better handling, the steering wheel has a diameter of 300mm and includes mount holes that are 6mm in size, spaced 35mm apart. It also features a rubber grip and a center plastic dust cap with an alignment guide for added convenience.
Specifications
| Specification | Detail |
|---|---|
| Assembled Length | 920mm – 1000mm |
| Steering Column Length | 195mm |
| Steering Column Housing | 42mm with Bearing |
| Steering Link Shaft Length | 480mm |
| Steering Travel | 70mm (Left to Right) |
| Steering Wheel Diameter | 300mm |
| Steering Wheel Mount Holes | 6mm holes (3), 35mm apart |
| Grip | Rubber Grip, Center Plastic Dust Cap with Alignment Guide |
| Weight | 3.5 kg |
Features & Benefits
- Adjustable length provides versatility in various applications.
- Smooth steering performance due to the incorporated bearing in the housing.
- Sturdy construction with a reliable grip for enhanced control.
- Comes complete with tie rod for easy installation.
- Lightweight design with a total weight of just 3.5 kg.
