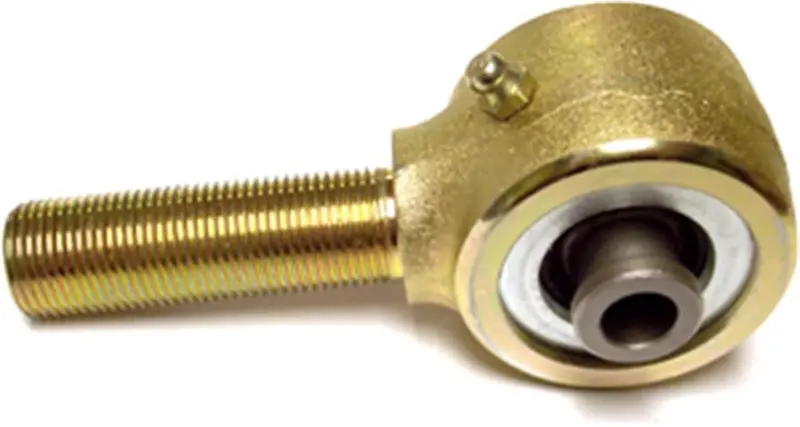

Heavy-duty Rockjock Johnny Joint rod end featuring a forged 2-inch body, precision-machined .4375-inch ball, and a 3/4-16 right-hand threaded shank—pre-greased for immediate use.

Description

RockJocks forged Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 in. diameter, fitted with a zerk fitting for greasing, 2 1/4 in. of 3/4 in.-16 right hand threads on the shank, and a 2 in. mounting width ball with a .4375 in. thru bolt hole. Finished in gold zinc plating.
Johnny Joint® Rod End; 2 in.; 2 in. Mounting Width; 0.75 in.-16 RH Threaded Shank; Externally Greased; w/o Bolt; 0.4375 in. Thru Bolt Hole; Each;

• Zerk Fitting For External Greasing – No Bolt Incl
