Description
About this product

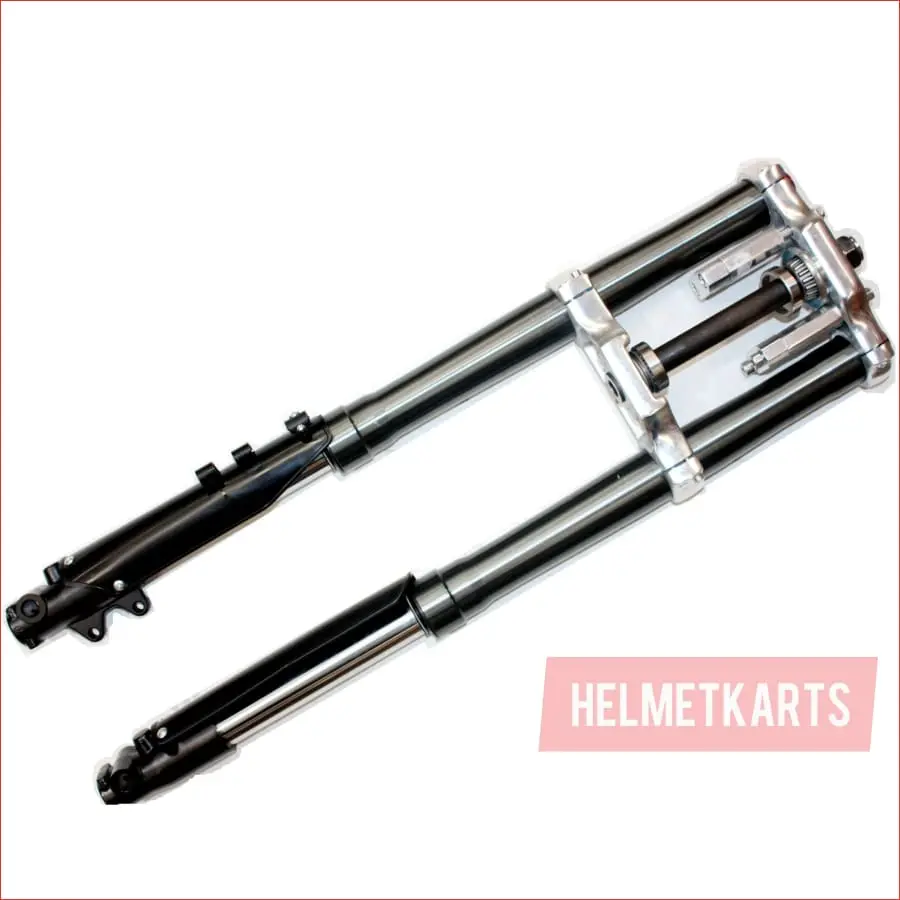

The 735mm USD Front Fork Triple Clamp Bar Riser is designed for 125cc and 140cc Big Foot Dirt Bikes. This high-quality component is perfect for those seeking to enhance their bike’s performance and handling on rugged terrains. Featuring an upside-down (USD) design, this fork ensures increased stability and control, making it ideal for competitive racing or off-road riding.
Specifications
| Specification | Detail |
|---|---|
| TOTAL LENGTH (from leg top to wheel axle centre) | approx 735mm |
| DISTANCE BETWEEN UPPER AND LOWER CLAMP | approx 170mm |
| DIAMETER OF FORK LEG FOR THE CLAMP (upper / lower) | 45mm / 48mm |
| DIAMETER OF THE HEAD STEM BOLT | approx 22.25mm |
| DIAMETER OF THE AXLE HOLE | approx 15mm |
| INNER DIAMETER OF THE BAR RISER | approx 22mm |
| DISTANCE BETWEEN THE FRONT CALIPER MOUNTING HOLES | approx 45mm |
Features & Benefits
- Enhanced stability and handling with USD design
- Durable construction for rigorous use
- Perfect fit for 125cc and 140cc Big Foot dirt bikes
- Improves overall riding comfort and performance
- Easy to install
