Description

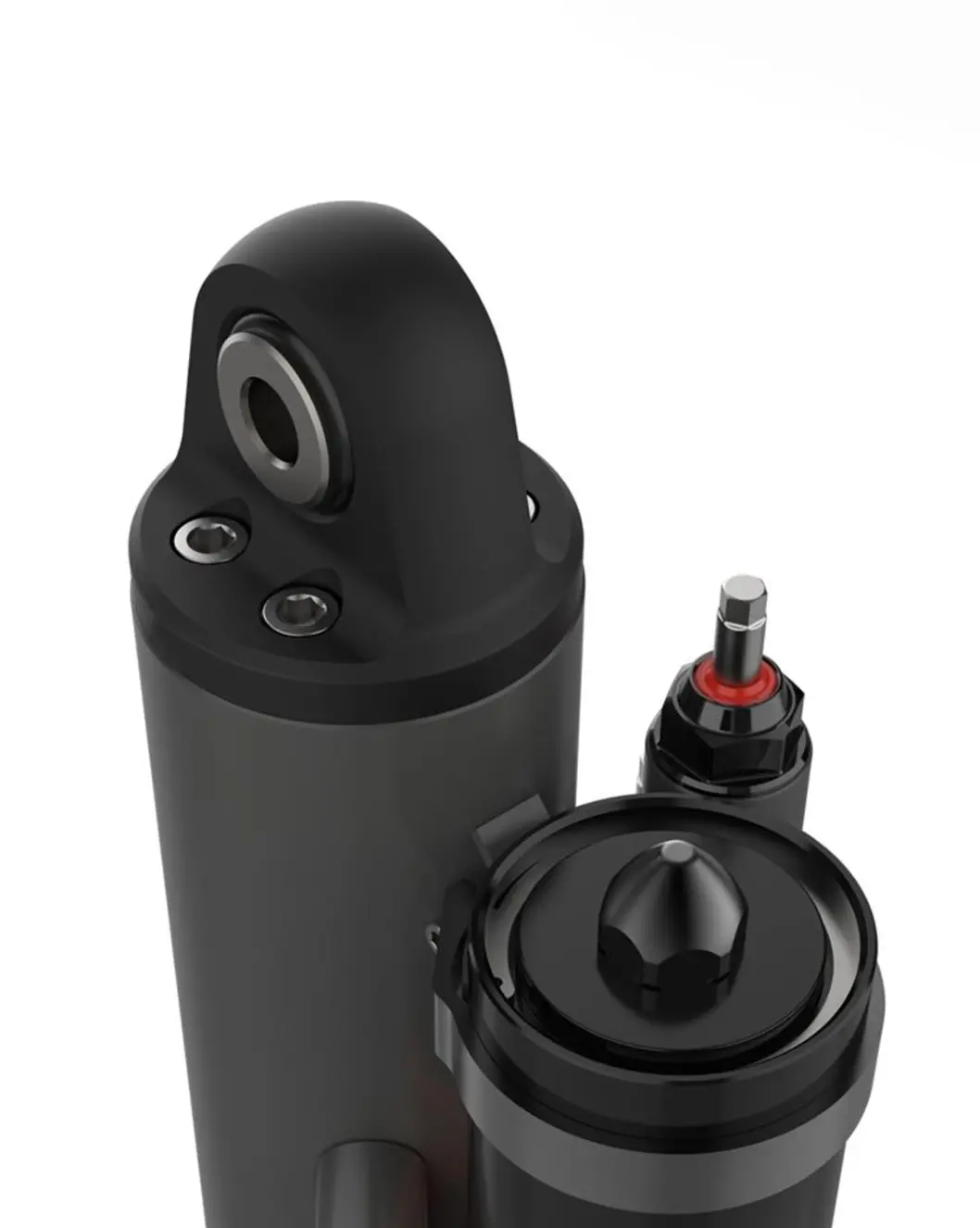

PAIR OF Fox 3.5×16 Piggyback 5 tube. 3/4″ bypass shocks including one right and one left handed shock
Uncompromised performance through FOX’s patented internal bypass technology delivers the feel of near-endless suspension travel. Exclusive internal bypass technology allows oil to flow around the piston at some points of the stroke while creating humongous pressure at other points supporting the vehicle like no other product can.
Floating through terrain is accomplished with FOX’s ride zone combining a race-developed shock piston, internal bypass and Dual Speed Compression adjustment allowing fine tuning for weight, terrain and speed.
Dominate any terrain with the brute strength of 3- and 2.5-inch aluminum bodies, cactus cooler reservoirs and 7/8′ shafts with redundant seals, all proven in the harshest of environments under the toughest of conditions.
Features
- NEW proprietary Cerakote® protective ceramic coating over zinc plated basecoat
- 17-4 H900 hard chrome plated stainless steel shaft
- Owner serviceable and rebuildable
- JM92 MIL-SPEC oil developed specifically for off-road racing
- Black Anodized CNC Machined Aluminum Components
Specifications
- Adjuster Type: External Bypass Clicker – Gen 3
- Body Diameter (in): 3.5 IN
- Body Finish: FOX Grey Cerakote
- Body Material: Steel
- Bottom Mount: Eyelet
- Bypass Tubes: 5
- Compressed Length (in): 26.47 IN
- Extended Length (in): 42.47 IN
- Eyelet Length (in): 2.05 IN
- Mounting: 5/8 x 1-1/2
- Reservoir Dimensions: 3.00 x 16.00
- Reservoir Type: Piggyback
- Series: Factory Race
- Shaft Size (in): 1 IN
- Top Mount: Eyelet
- Travel (in): 16.00 IN
- Type: External Bypass
***** SOLD AS PAIR *****
