Description

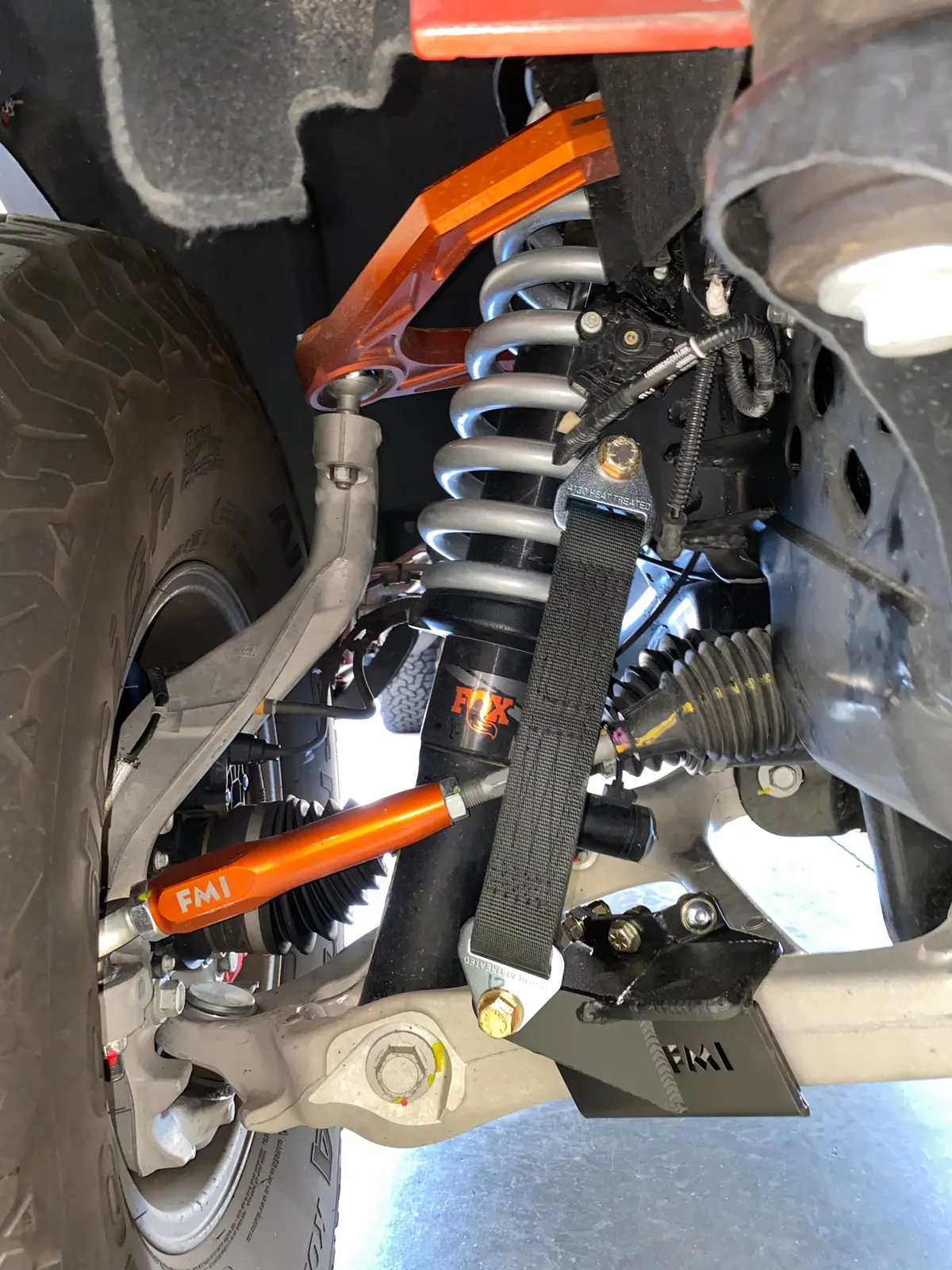

Control the top out travel and prevent your front suspension from damage with our new Gen 3 and Gen 3.5 Raptor Limit Strap Kit.
FEATURES & BENEFITS • Designed to work with your factory stock lower a-arm and bolt on to the cast aluminum.• Limits the top out travel and saves your top shock mount from premature damage.• Extends the life of your Raptors front suspension components• Restraints the top out so you don’t have to rely on just the shock to stop the droop.• An absolute must-have If you’re using aftermarket springs on your Raptor• Works for 2021, 2022, 2023, 2024 F150 Raptor, Raotor RSTRONG STRAP WITH STEEL TABS• The 12″ straps are made of high quality material that is capable to withstand abuse when you off-road. Their extreme durability will provide you with long lasting strength, unlike cheap straps that will stretch and wear out over time.• Each strap features 4 layers of military grade webbing with steel mounting tabs at the end that are plated black.
MOUNTING BRACKET WITH BUMP STOP PAD• A bump stop pad is built into the mounting brackets as an easy addition for a front bump stop kit that can be added at any time. • The mounting brackets that secure around the front of the lower stock control arm and are mig welded in house and then finished in a hammer black powder coat for ultimate durability and strength.
KIT INCLUDES: • ( 2 ) 12″ length Limit Straps• ( 2 ) Weld-On Mounting Tabs• ( 2 ) Gussets• ( 2 ) Main Mounting Brackets • ( 2 ) Mounting Bracket PlatesLower Control Arm Mounting Bracket Hardware:
• ( 10 ) 3/8-16 x 1 1/4″ Bolts• ( 10 ) 3/8-16 Nyloc Nuts• ( 6 ) 3/8 Washers
Lower Strap Mounting Bracket Hardware
• ( 2 ) 1/2-20 Nyloc Nuts • ( 2 ) 1/2-20 12 point Bolts • ( 4 ) 1/2 SAE washers
Upper Strap Mounting Bracket Hardware
• ( 2 ) 1/2-13 x 1 1/2″ Bolts • ( 2 ) 1/2-13 Nyloc Nuts • ( 4 ) 1/2 SAE Washers
INSTALLATION NOTE: This install will require you to weld the upper limit strap tabs to the frame and should be installed by a qualified welder/fabricator***
