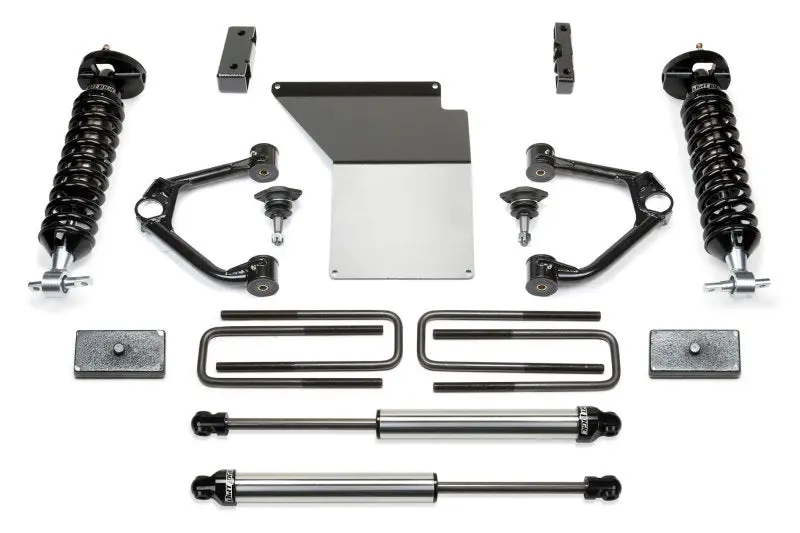

Fabtech 3.5-inch lift system for 2007–2018 Chevrolet/GMC K1500 trucks featuring OE-replacement forged upper control arms, adjustable 2.5-inch dual-rate coilover front suspension, and performance rear dual-mode shocks.

Description

This system offers a mild lift height with easy installation for clearance of 33″ tall tires on GM C/K1500s. Lift is accomplished with Dirt Logic 2.5 Coilovers that provide superior damping for aggressive offroad use and a good highway ride. The stock upper control arms are replaced with high quality tubular Uniball arms that allow unrestricted movement throughout the travel range. The arms are constructed of top quality material including .120″ wall 4130 Chromoly tubing with a 1.50″ OD and 1″ FK Stainless PTFE Uniballs. These arms are the best on the market for aggressive offroad driving in harsh conditions. The front differential is relocated to keep CV angles proper with the new lift height while a 1/4″ thick steel skid plate provides protection against offroad obstacles. Rear lift is accomplished with 1 1/2″ rear lift block and u-bolts to help level the stance of the vehicles. Dirt Logic 2.25 rear shock absorbers replace the stock units for increased damping for both on and offroad use. – Best in class system for aggressive offroad use and good highway ride Increased ground clearance Top quality Uniball Upper Control Arms for aggressive offroad use 1″ ID American made FK Uniballs with PTFE for ultimate strength Includes Dirt Logic 2.5 Coilovers for superior damping Increased fender clearance compared to a Leveling Kit for 33″ tall tires Suspension can be restored to stock.
4in. UNIBALL UCA SYS W/DL 2.5/2.25 07-18 GM K1500 P/U
TIRE SIZE – 33/12.50R17 WHEEL – 17X8 W/4 1/2″ BS W/MINOR TRIMMING; TIRE SIZE – 275/65R18 WHEEL – 18X8 W/4 1/2″ BS W/MINOR TRIMMING; TIRE SIZE – 295/55R20 WHEEL – 20X9 W/5″ BS W/MINOR TRIMMING; 1. WILL NOT FIT MODELS WITH FACTORY AUTORIDE SHOCKS.; 8. WILL NOT FIT ALL WHEEL DRIVE MODELS.; 14. CAN NOT USE OEM WHEEL AND TIRE.; 17. DOES NOT FIT STANDARD CAB.; 128. FITS MODELS WITH FACTORY FORGED BLACK STEEL UPPER CONTROL ARM.

Fitment:
2007 Chevrolet Silverado 1500
2007 Chevrolet Silverado 1500 Classic
2007 Chevrolet Silverado 1500 HD Classic
2007 GMC Sierra 1500
2007 GMC Sierra 1500 Classic
2007 GMC Sierra 1500 HD Classic
2008 Chevrolet Silverado 1500
2008 GMC Sierra 1500
2009 Chevrolet Silverado 1500
2009 GMC Sierra 1500
2010 Chevrolet Silverado 1500
2010 GMC Sierra 1500
2011 Chevrolet Silverado 1500
2011 GMC Sierra 1500
2012 Chevrolet Silverado 1500
2012 GMC Sierra 1500
2013 Chevrolet Silverado 1500
2013 GMC Sierra 1500
2014 Chevrolet Silverado 1500
2014 GMC Sierra 1500
2015 Chevrolet Silverado 1500
2015 GMC Sierra 1500
2017 Chevrolet Silverado 1500
2017 GMC Sierra 1500
2018 Chevrolet Silverado 1500
2018 GMC Sierra 1500
