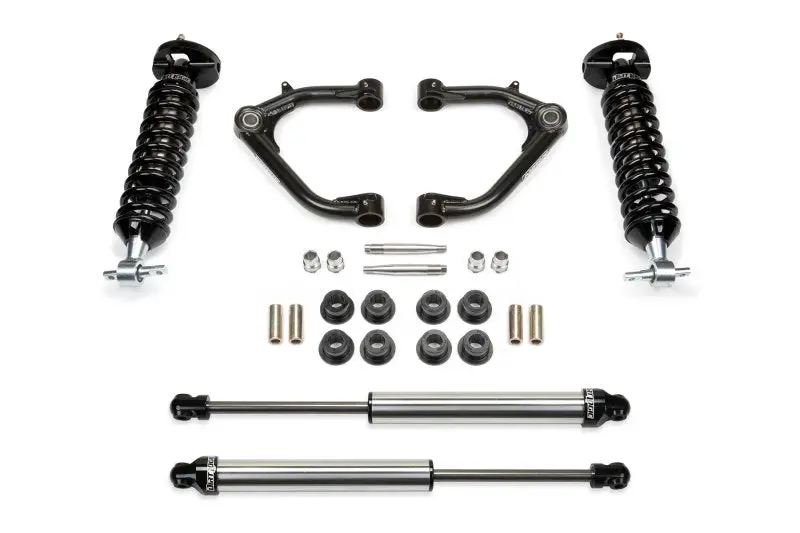

Fabtech 3.5-Inch Lift Kit with Forged Upper Control Arms and Rear Stealth Shocks for 2007–2018 GM K1500

Description

Designed for the value minded enthusiast, the 4″ Budget System for GM C/K1500’s provides a mild lift height with a supple ride for use with 33″ tall tires. Fabtech’s replacement DOM upper tubular control arms feature heavy duty extended range ball joints that provide additional strength to the front suspension. The new ball joints provide unrestricted movement throughout the suspension travel range for smooth operation. The front differential housing is relocated to keep CV angles proper with the new ride height while a 1/4″ thick steel skid plate protects the front diff. The rear lift comes from a 1 1/2″ lift block and u bolt system. The 4″ Budget System is available with two shock configurations. One utilizes the stock front Coilover shocks with upper spacers along and rear Stealth Shocks. The second option for increased damping is the high end Dirt Logic 2.5 Coilovers for the front and Dirt Logic 2.25 shocks on the rear.
4in. BUDGET SYS W/STEALTH 07-18 GM K1500 P/U W/OE FORG STL UCA
TIRE SIZE – 33/12.50R17 WHEEL – 17X8 W/4 1/2″ BS W/MINOR TRIMMING; TIRE SIZE – 275/65R18 WHEEL – 18X8 W/4 1/2″ BS W/MINOR TRIMMING; TIRE SIZE – 295/55R20 WHEEL – 20X9 W/5″ BS W/MINOR TRIMMING; 1. WILL NOT FIT MODELS WITH FACTORY AUTORIDE SHOCKS.; 8. WILL NOT FIT ALL WHEEL DRIVE MODELS.; 14. CAN NOT USE OEM WHEEL AND TIRE.; 17. DOES NOT FIT STANDARD CAB.; 128. FITS MODELS WITH FACTORY FORGED BLACK STEEL UPPER CONTROL ARM.

Fitment:
2007 Chevrolet Silverado 1500
2007 GMC Sierra 1500
2008 Chevrolet Silverado 1500
2008 GMC Sierra 1500
2009 Chevrolet Silverado 1500
2009 GMC Sierra 1500
2010 Chevrolet Silverado 1500
2010 GMC Sierra 1500
2011 Chevrolet Silverado 1500
2011 GMC Sierra 1500
2012 Chevrolet Silverado 1500
2012 GMC Sierra 1500
2013 Chevrolet Silverado 1500
2013 GMC Sierra 1500
2014 Chevrolet Silverado 1500
2014 GMC Sierra 1500
2015 Chevrolet Silverado 1500
2015 GMC Sierra 1500
2016 Chevrolet Silverado 1500
2016 GMC Sierra 1500
2017 Chevrolet Silverado 1500
2017 GMC Sierra 1500
2018 Chevrolet Silverado 1500
2018 GMC Sierra 1500
