Description

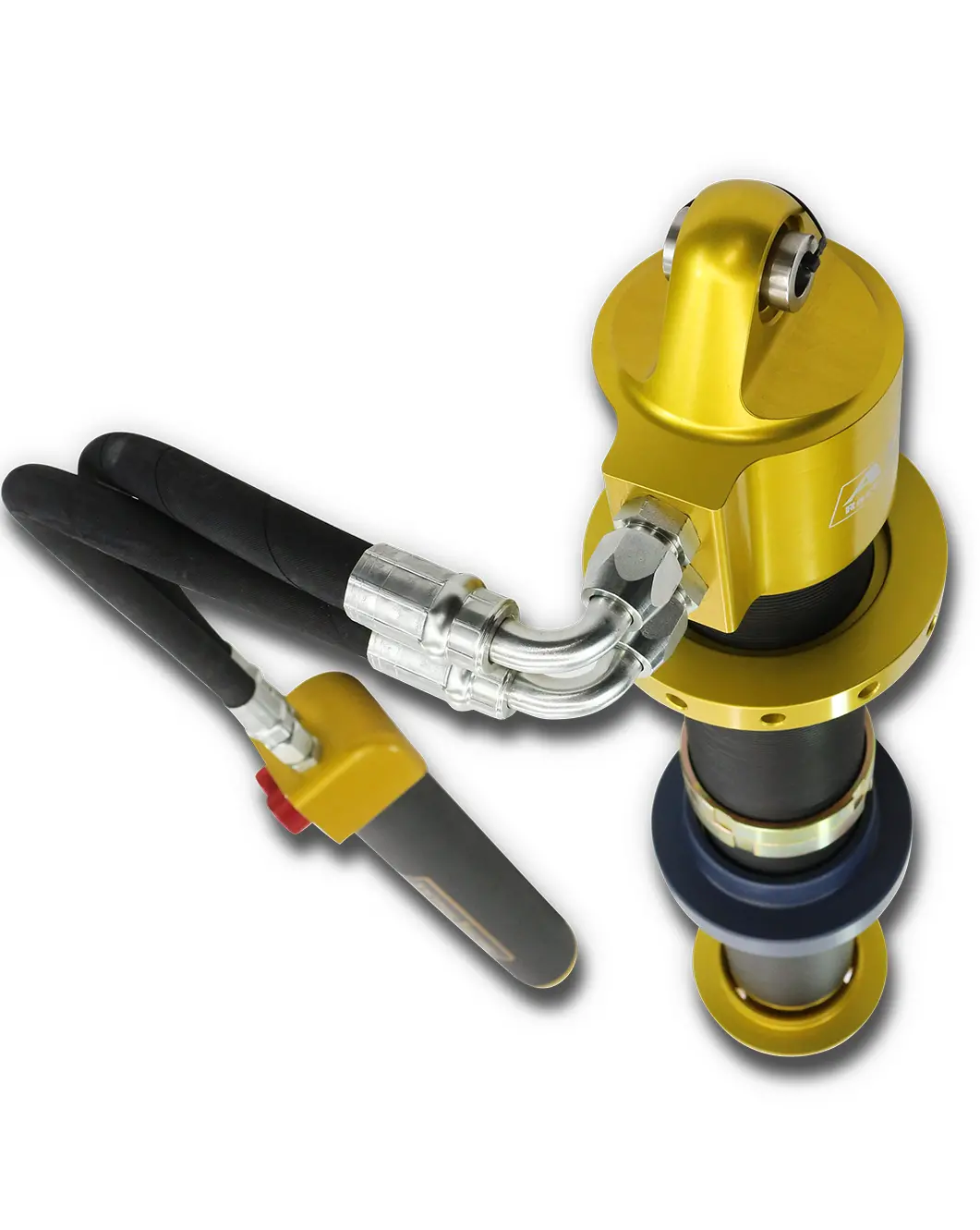

ADS is redefining high-performance suspension with their groundbreaking Multi Bypass Ring (MBR) Coil over Shocks — 3.0″ x 14″ travel per shock — engineered to raise the bar in adjustability, control, and durability.
MBR TECHNOLOGY (MULTI-STAGE BYPASS RING)
• True multi-stage bypass system with independently adjustable zones
• Positive stop helix system for precise and repeatable tuning
• Delivers high flow performance comparable to 7-tube external bypasses on 16″ stroke shocks
• Internal free-bleed ports allow tuners to fine-tune the damping curve for specific vehicle needs
• Integrated top-out zone provides both mechanical and hydraulic damping to prevent damage during full extension
• Limit straps are recommended for racing and extreme-duty use
4-WAY ADJUSTABLE REMOTE RESERVOIR
• Independent high- and low-speed adjusters for both compression and rebound
• Dual-hose design enables a true recirculating fluid path
• Internal diverters ensure full-body fluid flow for enhanced cooling efficiency
BUILT FOR EXTREME PERFORMANCE
• Vacuum-bled and filled with high-performance synthetic fluid to reduce fade and extend service life
• Oversized 2.5″ reservoirs boost fluid capacity for superior thermal management
• High-temp seals prevent blow-by and maintain consistent damping under extreme temperatures
• Threaded end caps safeguard against external contamination
• Advanced 3-stage urethane seal package provides unmatched sealing in all climates—from snowy trails to desert heat
SPECIFICATIONS
• Brand: ADS
• Part Number: 300-MBR14-000
• UPC: 090127839294
• Category: Suspension
• Sub-Category: Shocks and Struts
• Product Type: Internal Bypass Shock
• Part Type: Suspension Shock Absorber
• Stroke Length: 14 in
• Compressed Length: 23.99 in
• Extended Length: 37.99 in
• Mounting Width / Bolt Size: 1.5″ x 0.500″
• Emission Code: 6
• California Proposition 65: No
• Quantity: Sold individually
