Description
About this product

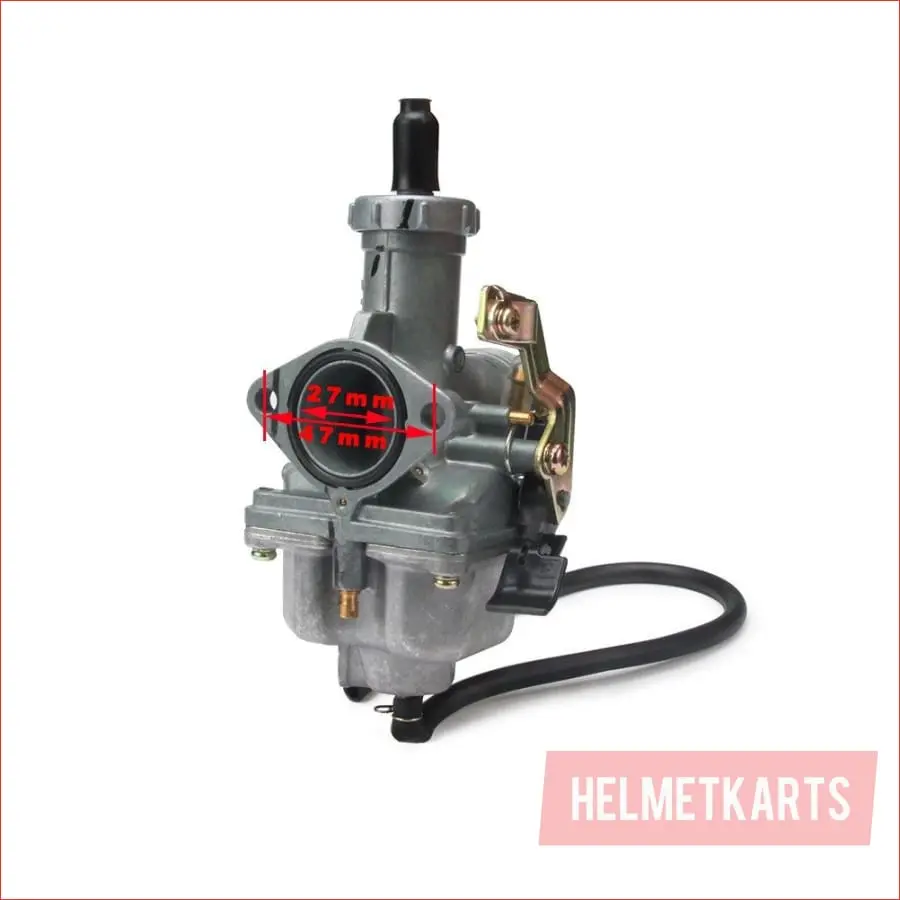

The PZ 27mm Carburetor is a high-quality component designed for efficiency and performance in fuel intake systems. This carburettor features a manual choke mechanism that is hand-operated, ensuring precise control over fuel flow and engine startup. The outer diameter of the air filter connection point is 38.28 mm, which excludes the lip, making it compatible with 38mm air filters. Constructed with excellent craftsmanship, this carburetor exhibits an internal fuel chamber diameter of 21.85 mm. Carefully designed to fit most standard setups, it has a distance between fixing holes on the outlet side of 48.50 mm center-to-center, and is accompanied by a durable silver finish.
Specifications
| Specification | Detail |
|---|---|
| Choke Mechanism | Manual – Hand Operated |
| Outer Diameter of Air Filter Connection Point | 38.28 mm / 1.51 inches |
| Internal Dimensions / Diameter of Fuel Chamber | 21.85 mm / 0.86 inches |
| Which Air Filter Size Does This Carb Take? | 38mm |
| Distance Between Fixing Holes (outlet side, centre of eye to centre of eye) | 48.50 mm / 1.91 inches |
| Inner Diameter of Outlet (greatest) | 29.35 mm / 1.16 inches |
| Width (from inlet side to outlet side) | 80.35 mm / 3.16 inches |
| Outer Diameter of Outlet | 27.50 mm / 1.08 inches |
| Overall Width | 83.74 mm / 3.3 inches |
| Overall Height | 167 mm / 6.57 inches |
| Distance Between Fixing Holes to Bottom of Drain Bowl | 79.65 mm / 3.14 inches |
| Diameter of Fixing Hole(s) | 6.20 mm / 0.24 inches |
| Inner Diameter of Air Intake | 35.35 mm / 1.39 inches |
| Inner Diameter of Outlet | 27.11 mm / 1.07 inches |
| Colour | Silver |
| Diameter of Straight Section Needle | 2.70 mm / 0.11 inches |
| Length of Straight Section Needle | 27.45 mm / 1.08 inches |
| Length of Tapered Section Needle | 28.55 mm / 1.12 inches |
Features & Benefits
- Ensures precision with manual hand-operated choke.
- Compatible with 38mm air filters for versatile installation.
- Durable silver finish adds a sleek look while resisting corrosion.
- Optimal dimensions enhancing performance in various setups.
- Designed to improve fuel efficiency and engine start-up.
