Description
About this product

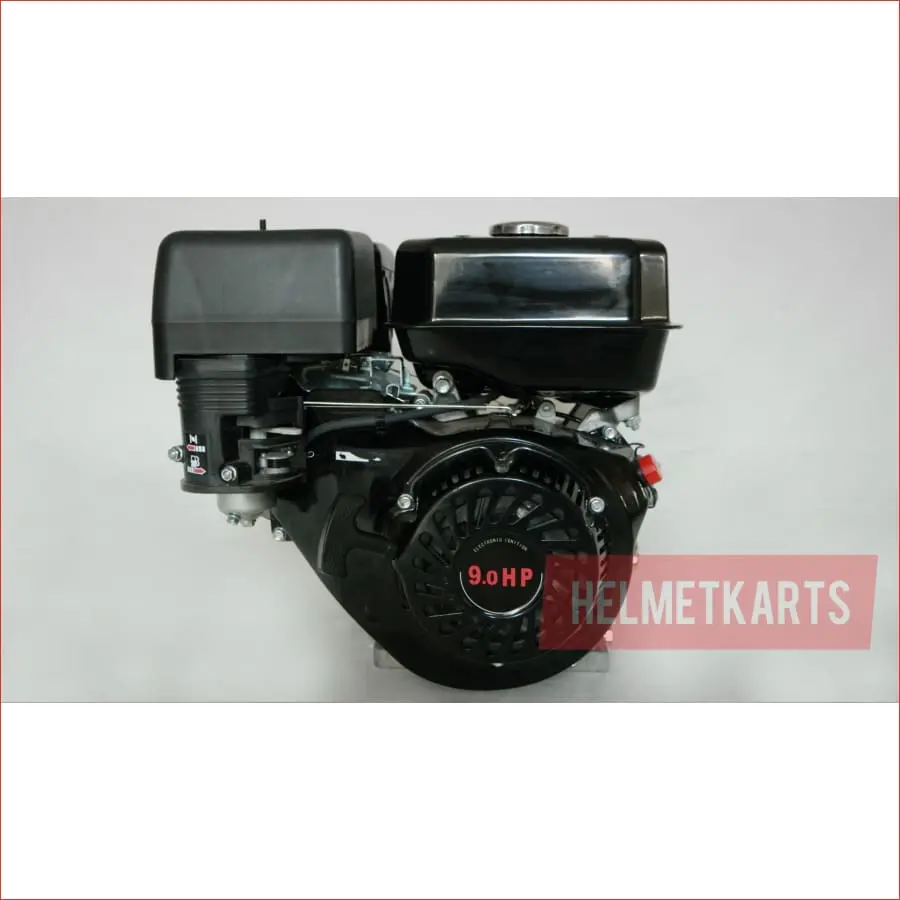

The HelmetKarts 270cc Stationary Engine delivers a powerful performance with a 9.0 HP output, making it an excellent choice for various stationary engine applications. This engine is equipped with a 2:1 Reduction wet clutch gearbox, providing efficient power transfer. It’s designed for reliability with an unleaded fuel system and an advanced Transistor Electric / Inductive Firing ignition system. This engine offers a good balance of power and fuel efficiency, making it suitable for a range of use cases.
The engine features a displacement of 270cc, a bore x stroke of 77mm x 58mm, and a maximum power output of 9HP at 3600rpm, governed to 1800rpm for safety and efficiency. It generates a maximum torque of 18.5 Nm at 2600rpm. The starting system is recoil-based, ensuring ease of use in various conditions.
Specifications
| Specification | Detail |
|---|---|
| Max Power Output | 9hp/3600rpm (Governed to 1800rpm) |
| Displacement | 270cc |
| Bore x Stroke (mm) | 77 x 58 |
| Max Torque | 18.5 Nm at 2600rpm |
| Ignition System | Transistor Electric / Inductive Firing |
| Starting System | Recoil |
| Fuel Tank Capacity | 6L |
| Oil Capacity | 1.1L |
| Fuel Consumptio | 374g/kw.h |
| Air Cleaner | Semi dry, dual filter |
| Shaft Diameter | 25mm |
| Shaft Length | 64mm |
| Shaft Keyway | Yes, key included |
| Gearbox Output Shaft Diameter | 7/8” (22.2mm) |
| Keyway Length | 60mm |
| Keyway Width | 6mm |
| Distance from Base to Centre of Output Shaft | 134mm |
| Shaft Rotatio | Anti-clockwise (from output) |
| Weight | 30kg |
Features & Benefits
- High performance with 9.0 HP output suitable for demanding tasks.
- Efficient 2:1 Reduction wet clutch gearbox for superior power transmission.
- Economical fuel consumption of 374g/kw.h.
- Compact and lightweight design at 30kg for easy handling and installation.
- Durable construction with quality components for long-term reliability.
